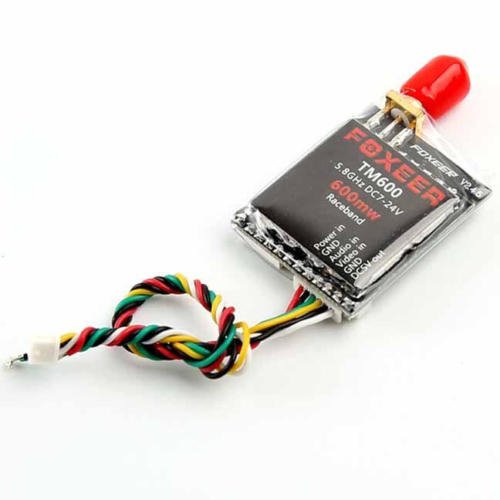

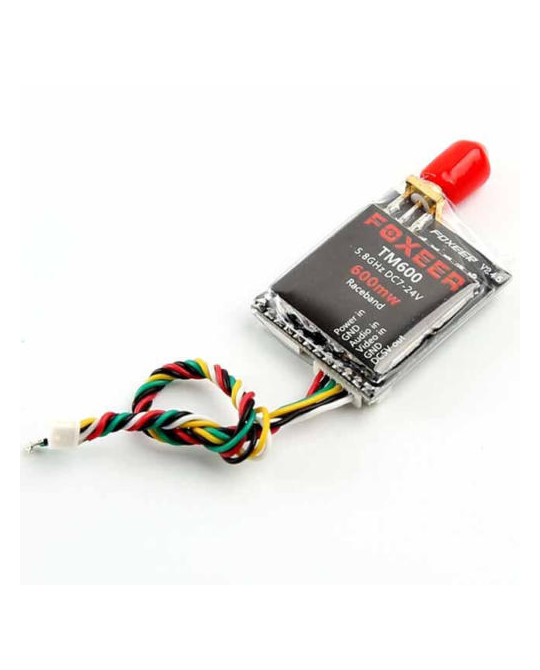

TM600 600mW vTx
Roll over to zoom in or click to enlarge
TM600 600mW vTx

Foxeer

TM600 600mW vTx

$49.90
Code:WS1224
This is the Foxeer latest 40CH 600mW VTx with race band designed for FPV. DC7~24V input voltage, DC5V output, very good anti-interference performance, compatible design, low light, long range, ideal for race.


Specification:

Transmitter Frequency(MHz) Wideband FM Modulate
Video Format NTSC/PAL
Output Impedance 50 Ohm
Operating Voltage 7~24V
Operating Temperature -10~ 85°C
Video Band Width 0~8.0 MHz
Audio carrier Frequency 6.5 MHz
Video Input Level 0.8~1.2 Vp-p
Audio Input Level 0.5~2.0 Vp-p
Audio Input Impedance 10K Ohm
Weight 10g
Antenna Connector SMA Connector
Package Included 1 x Transmitter
1 x Cable

FRCH CH1  CH2  CH3  CH4   CH5  CH6  CH7  CH8
A(1.) 5865 5845 5825 5805 5785 5765 5745 5725
B(2.) 5733 5752 5771 5790 5809 5828 5847 5866
E(3.) 5705 5685 5665 5645 5885 5905 5925 5945
F(4.) 5740 5760 5780 5800 5820 5840 5860 5880
R(5.) 5658 5695 5732 5769 5806 5843 5880 5917
Price: $49.90
