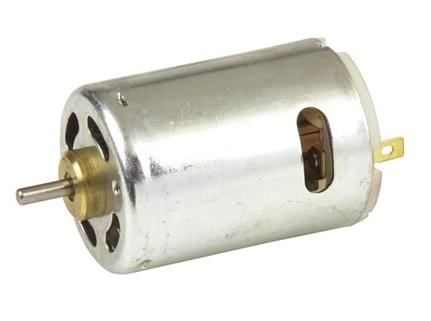

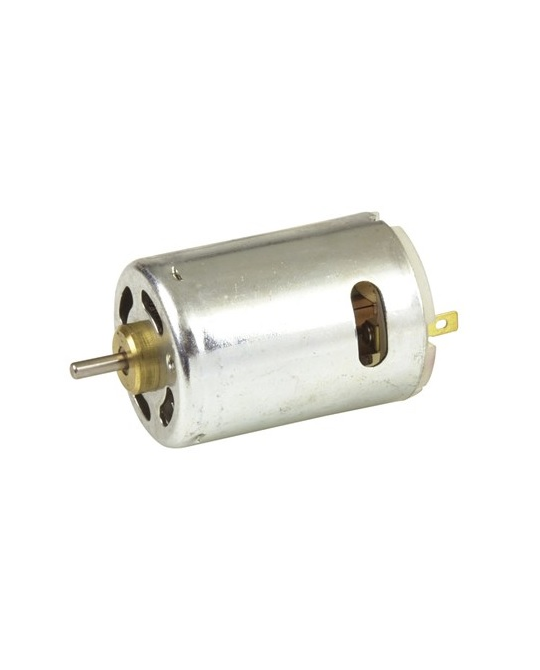

12V DC Motor 8100rpm
Roll over to zoom in or click to enlarge

Duratech
12V DC Motor 8100rpm
$16.90

Code:ELYM2716
Length : 57mm
Diameter : 26.66mm
DC Voltage : 12V
Motor Type : High Speed
Motor Nominal Voltage : 12V
No load current : 0.28A
No load RPM : 14500RPM
Full load current : 4.3A
Full load torque : 520g.cm
Max efficiency : 66.1%
Max efficiency power : 5.56W
Max efficiency RPM : 10950RPM
Maximum efficiency torque : 100g.cm
Max. efficiency current : 1.5A
Shaft diameter : 2.3mm
Shaft length : 13mm
Length : 13mm
Diameter : 2.3mm
$16.90
