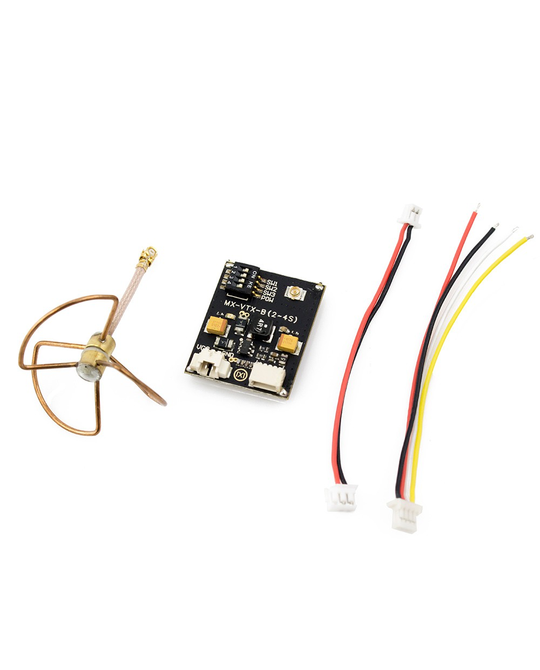

The MX-VTX-B is a super tiny and light micro 5.8G video TX, power output is 200mw, it can supply power for an outside DV, very useful for those multirotor copters or planes that are very strict on flight weight.
-
Output power:200mW
-
8 working channel
-
Super tiny:25.8*21.0*6.8m (not including antenna)
-
Super light:6.0g (including clover antenna)
-
Working voltage:7.4~18V(2S~4S)
-
Working current: 350mA/8.0V; 200mA/12V
-
Max current supply for outside DV: 500mA
-
Over current protection for outside DV
-
Support protection of power reverse connection
-
IPX/UFL antenna port
-
RHCP
Note: "p” indicates "POW”, when "POW” is ON, video TX supply power to outside DV, and B light is on at the same time.
Description about LED light:
A is on indicates the power is normal; B is on indicates supplying power for an outside DV.
Diagram Connection
