The ultimate 1/5 scale platform for bashing and performing stunts now includes the extreme strength of EXB parts, a beefed-up Spektrum™ 8S LiPo-capable brushless system, and much more — in a convenient, ready-to-run package that's loaded with value.

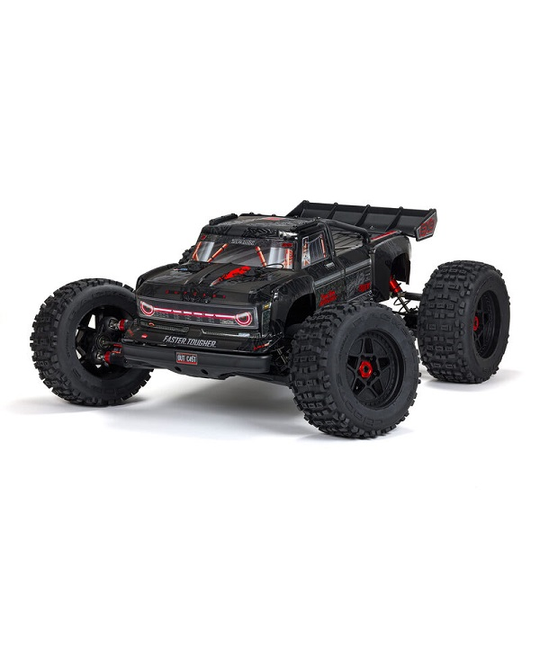

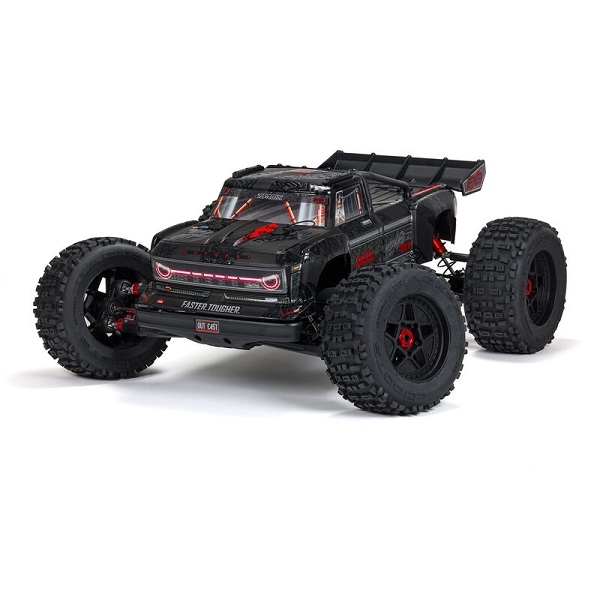

The ultimate ARRMA® 1/5 scale ready-to-run Stunt Truck
Engineered tough with EXtreme Bash 7075-T6 aluminum parts
Bigger, tougher shocks, linkages, turnbuckles, and more
Aggressive new EXB matte-and-gloss color scheme
Updated, extreme 8S LiPo capable Spektrum™ brushless power system
In The Box
(1) 1/5 OUTCAST™ 8S EXtreme Bash Stunt Truck 4X4 RTR
(1) Spektrum™ S6510 steel gear waterproof servo
(1) Spektrum™ FIRMA™ 1100Kv brushless motor
(1) Spektrum™ FIRMA™ 160A V2 Smart ESC
(1) Spektrum™ DX3™ 3-channel 2.4GHz DSMR radio with SR6200A DSMR receiver
(1) CNC machined aluminum 24mm wheel wrench
(1) 1/5 OUTCAST™ 8S EXtreme Bash Stunt Truck Product Manual
Needed to Complete
(2) 3S or (2) 4S LiPo Batteries with EC5™ or IC5™ connector
(1) Compatible Battery Charger
(4) AA batteries for Transmitter
Features
The ultimate ARRMA® 1/5 scale RTR Stunt Truck
Engineered tough with EXtreme Bash 7075-T6 aluminum parts
Bigger, tougher shocks, linkages, turnbuckles, and more
Aggressive new EXB matte-and-gloss color scheme
Updated 8S LiPo capable Spektrum brushless power system
EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
EXB Red-anodized CNC aluminum front brace mount
Spektrum™ FIRMA™ 1100Kv brushless motor with 10% more torque
Spektrum™ S6510 steel gear waterproof servo with 47% more torque
Spektrum™ DX3 3-channel 2.4GHz DSMR radio
Spektrum™ SR6200A DSMR receiver with AVC®
Updated Spektrum™ FIRMA™ 160A V2 Smart ESC for more punch and better driving feel
New big block dBoots® Back-Flip BB tires
Front bumper with impact-absorbing design
Easy-access 3-bolt sliding motor mount
Heavy-duty drivetrain
Easy-access front and rear diff module design
All-metal diff outdrives and gearbox internals
Durable steel driveshafts
Durable wheel hubs
Easy-access waterproof electronics module
Center body support and brace for maximum durability
Strong composite chassis side pods
Wheelie bar
High-quality CNC machined aluminum 24mm wheel wrench included
2-Year limited warranty (see website support for details)
Overview
For stunt and bashing performance at its biggest and best, the ARRMA® OUTCAST™ 1/5 8S Stunt Truck has no equal. In this new ready-to-run version, it's better than ever before! Not only is the OUTCAST™ 1/5 8S EXB Stunt Truck RTR loaded with EXtreme Bash parts for even greater durability, but it also arrives with higher-powered Spektrum™ 8S LiPo-capable brushless electronics already installed — all at an astonishingly affordable price.
Punchy and powerful, the new Spektrum™ 8S-capable brushless system features a massive 5687 FIRMA™ 1100Kv brushless motor with a huge 56mm diameter and 10% more torque than the previous OUTCAST™ 8S RTR. The new motor is paired with a Spektrum™ S6510 steel gear servo that puts out 820 oz-in of torque at 8.4V — nearly 50% more muscle than its predecessor. The new RTR package also includes a Spektrum™ FIRMA™ 160A V2 Smart ESC and Spektrum™ DX3 3-channel 2.4GHz DSMR radio system, with Spektrum AVC technology built-in to keep the huge power under control.
The toughness engineered into the ARRMA® OUTCAST™ 1/5 8S EXtreme Bash Stunt Truck must be bashed to be believed. A huge number of EXB-hardened parts and options give it virtually unstoppable strength straight out of the box. They include a 5mm thick EXB 7075 T6 CNC aluminum laser-etched chassis plate; EXB red-anodized CNC aluminum front brace mount; and EXB front bumper with impact absorbing design. Topping it all off is an aggressive truck body with a bold new EXB matte-and-gloss paint scheme, for a look unlike any other vehicle. No "Candy Crush" designs here — the OUTCAST™ EXB is built to be as purposeful as it looks!
Adjustable, oil-filled, 20mm bore shocks with 6mm thick shock shafts and ultra-thick composite towers soak up bumps. The ARRMA® OUTCAST™ 1/5 8S EXtreme Bash Stunt Truck RTR blasts over all kinds of surfaces, from asphalt to dirt and grass. Big dBoots® BACK FLIP™ 2 big block tires on multi-spoke wheels add all-terrain traction. Everything in the durable design contributes to confident control and responsive handling for whatever eye-popping stunts you can imagine.
A center body support, aluminum center braces and composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to extreme action.
Of course, the popular, easy-access ARRMA® modular design lowers your maintenance downtime to the minimum — so you can keep on enjoying the surprisingly affordable high-end performance without interruption. Ultimately, the OUTCAST™ 1/5 8S EXtreme Bash Stunt Truck is more than a massive and powerful bashing machine. It's the biggest and best ARRMA® ready-to-run basher to date!
| Battery | Sold Separately |
| Connector Type | IC5 |
| Ground Clearance | 2.56 in (65mm) |
| Internal Gear Ratio | 9.06 |
| Ball Bearings | Complete |
| Chassis | 5mm Plate, 7075-T6 Aluminum |
| Completion Level | Ready-To-Run |
| Drivetrain | 4WD |
| Drive Type | Forward/Brake/Reverse |
| Product Height | 12.01" (305 mm) |
| Power Type | Electric |
| Gear Pitch | 1.0 MOD |
| Motor Size | 5687-1100Kv 4 Pole |
| Product Length | 28.11" (714 mm) |
| Spur Gear | 47T |
| Suspension | Independent |
| Charger | Sold Separately |
| Differential | 3 Gear Diffs |
| Receiver | Included |
| Shock Type | Oil-Filled, Coil-Over Springs |
| Top Speed | 50+ |
| Wheel Hex Size | 24mm |
| Motor Type | Brushless |
| Speed Control | Included |
| Wheelbase | 16.93" (430 mm) |
| Body | Painted, decalled and trimmed |
| Brakes | Integral with ESC |
| Scale | 1/5 |
| Tire Tread | dBoots BACK-FLIP |
| Vehicle Type | Monster Truck |
| Water-Resistant | Yes |
| Power System | 8S |
| Product Width | 23.43" (595 mm) |
| Radio | Included |
| Technology | AVC and SMART |
| Servos | Included |
