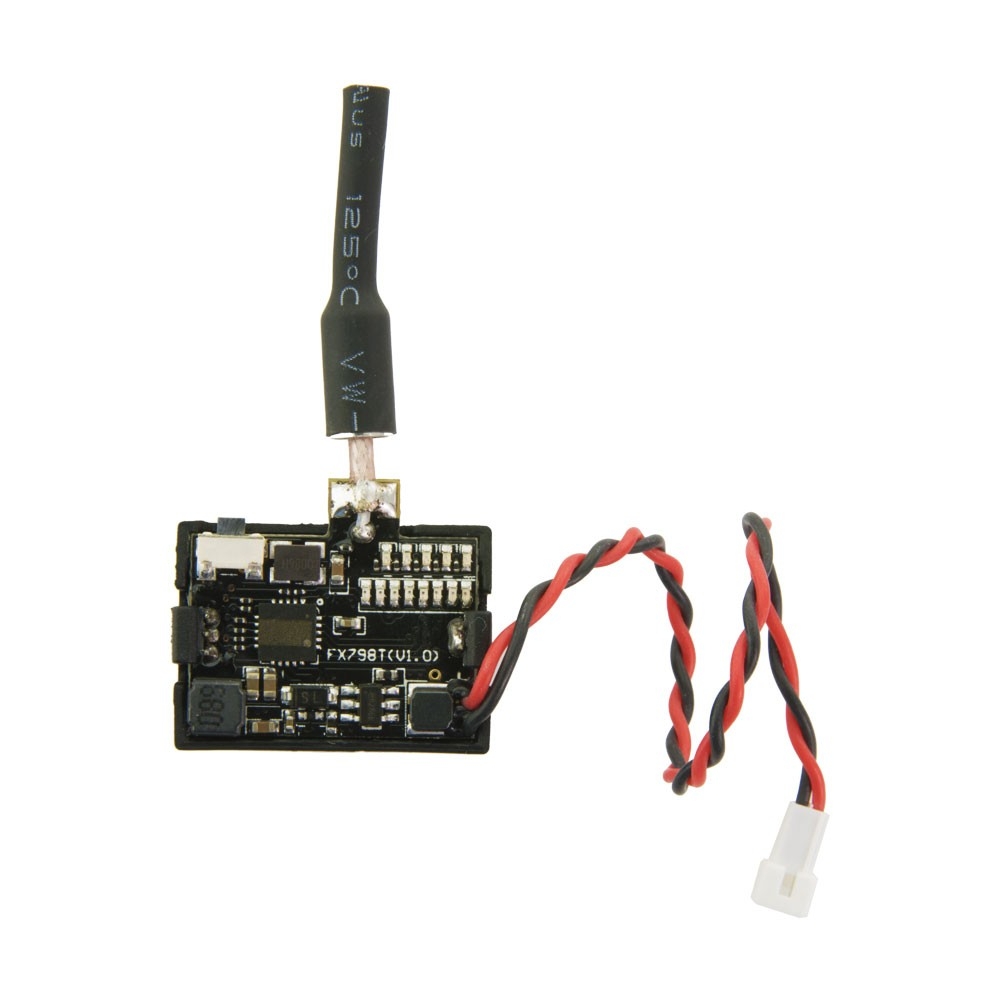

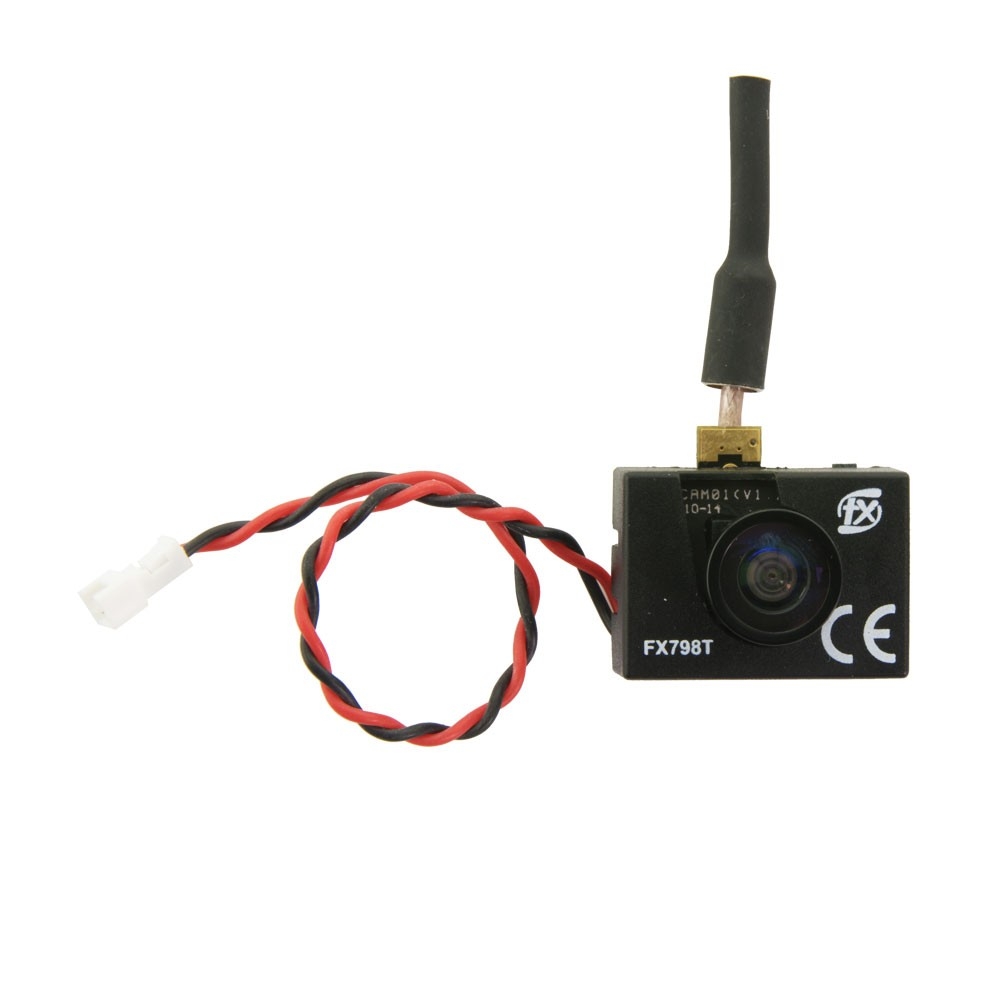

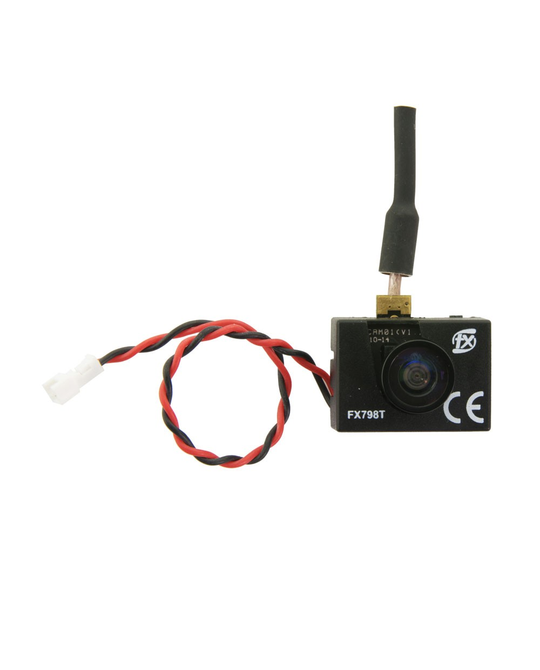

The FX798T Camera Combo with Dipole Whip Antenna 5.8GHz 37CH 25mW is extremely small and could be installed on almost anything. The unit is ultra-lightweight, so it is easy to place on any aircraft without affecting the COG. Most multi-rotors wouldn’t even notice it was there. This Camera / VTX combo is a popular choice for adding FPV to the Blade Inductrix micro quadcopter.
It’s easy to install and operate with one push button to change channels and bands. Just plug into a little 1S Lipoly battery or onto your 5V rail and you are ready to go.
It has excellent video and low latency for such a small package. The combo also includes a splitter with dipole whip antenna 5.8G tuned antenna for the best video signal.
Features- Micro sized and lightweight (4.5g)
- 37CH VTX
- Easy install, plug and play
- Push button control instead of switch to change channels
- Powered by 1S 3.5V LiPoly battery
Specs
- Transmitter power: 25mW
- Input power: 2.5~5V
- Camera resolution: 600TVL
- Min illumination: 1 lux
- Field of view: 120deg viewing angle
- Antenna dimensions: 20 x 25mm diameter
- Antenna: Dipole antenna with heatshrink guard
- Video output: NTSC
- Frequency: 5.8GHz 5 bands 37 channels
- Raceband: 5658-5917
- Size: 21x19x17mm (excluding antenna)
- Weight: 4.5g
Channels:
| | CH |
| CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| BAND | F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| E | 5705 | 5685 | 5665 | 5665 | 5885 | 5905 | 5905 | 5905 |
| A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
Operation:
Push Button: Long press for band, Short press for channel
2 row LED indicators; 5 for band, 8 for channel
