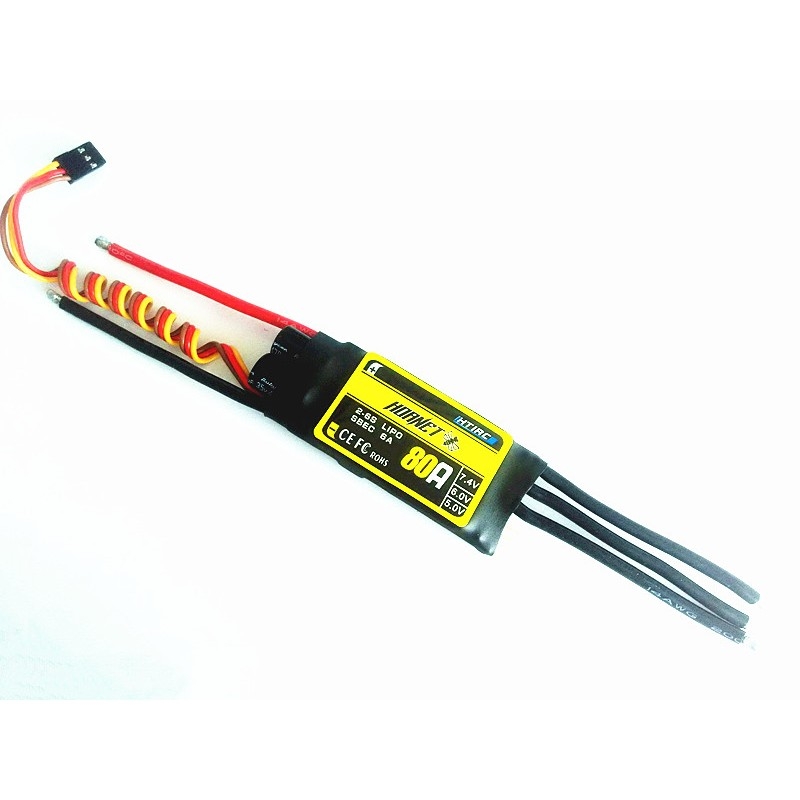

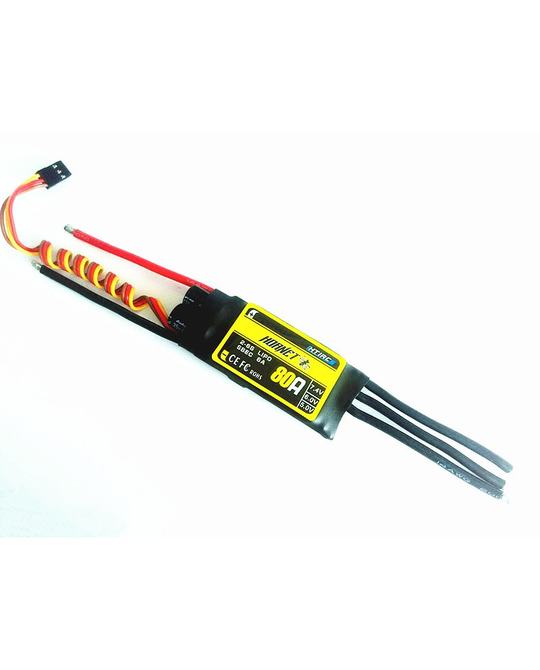

Hornet 80A. Aircraft Heli ESC. 80A/100A 2-6LiPo
Roll over to zoom in or click to enlarge
Hornet 80A. Aircraft Heli ESC. 80A/100A 2-6LiPo

HTIRC

Hornet 80A. Aircraft Heli ESC. 80A/100A 2-6LiPo

$111.20
Code:HTI-H80-603001



Hornet 80A
Aircraft Heli ESC.
Burst 80A/100A
2-6LiPo 5-18NC
SBEC 5,6,7.4V/6.0A,
60x30x14mm, 56g




● Programmable features from Transmitter or *Program Card (sold separately)

a. Brake on/off

b. Battery Type, NiMh/Lipo

c. Direction of rotation

d. Soft start, enable/disable

e. LVC, reduce power/cutoff

f. Timing, Auto 7-30 degrees, Soft 7 degrees, Advance 22-30 degrees

g. PWM Frequency, 8kHz, 16kHz

h. Governor Mode (Heli) on/off

i. *Cut Off Type, Reduce power/cutoff

j. *Acceleration, Low, Normal, High

k. *Brake, Off, 20%, 50%, 100%

l. *Start Power, Hard/Soft

m. *PWM Frequency, 8kHz, 16kHz

n. *Battey Type, NiMh/LiPo

o. *Direction of rotation

p. *LVC, Low 3.1V, Normal 3.2V

q. *Governor Mode (Heli) on/off

r. *Advanced Timing. Fixed 8,16. Auto. Soft 0-7, Medium 8-15, Hard 16-25



● Over-heat protection: Power will auto reduce when the temperature reaches 120℃.

● Elaborate circuit design with strong anti-interference features.

● Safety functions;

1. Abnormal input voltage protection.

2. Low battery voltage protection.

3. Over-heat  protection.

4. Throttle signals loss protection.

Price: $111.20
