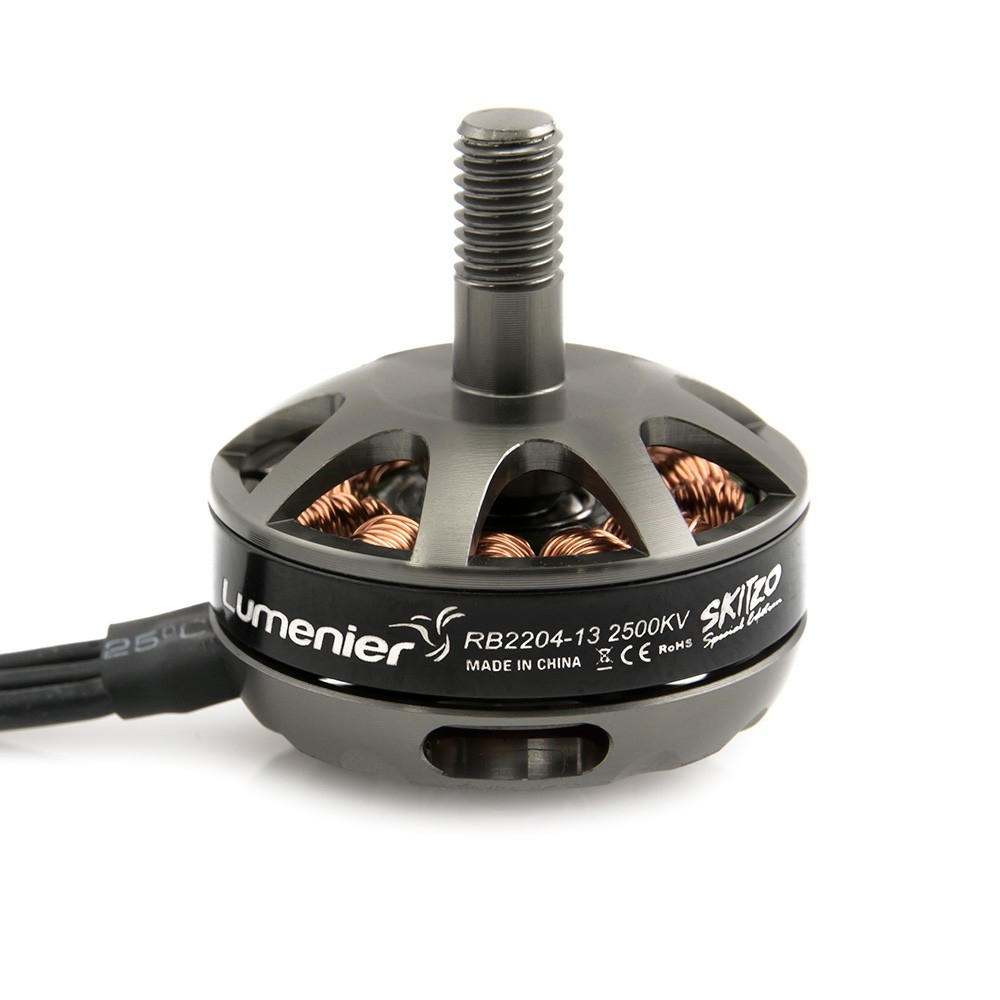

RB2204- 13 2500Kv SKITZO Special Edition Motor - GF4345

$57.10
Code:GF4345

Lumenier has collaborated with FPV pilot SKITZO, one of the most influential and talented FPV freestyle pilots today, to bring you the perfect FPV freestyle motor. This Lumenier RB2204-13 2500Kv motor has been engineered from the ground up, and it is the perfect blend of elegant design and high end performance. By using high quality steel bearings and CNC precision machined parts, each Lumenier motor provides silky smooth, reliable power. The Kv and size of the motor has been carefully selected to be optimized for 5" props on a 4s battery. This combination gives you an excellent burst of power to quickly elevate your aircraft above and around objects.

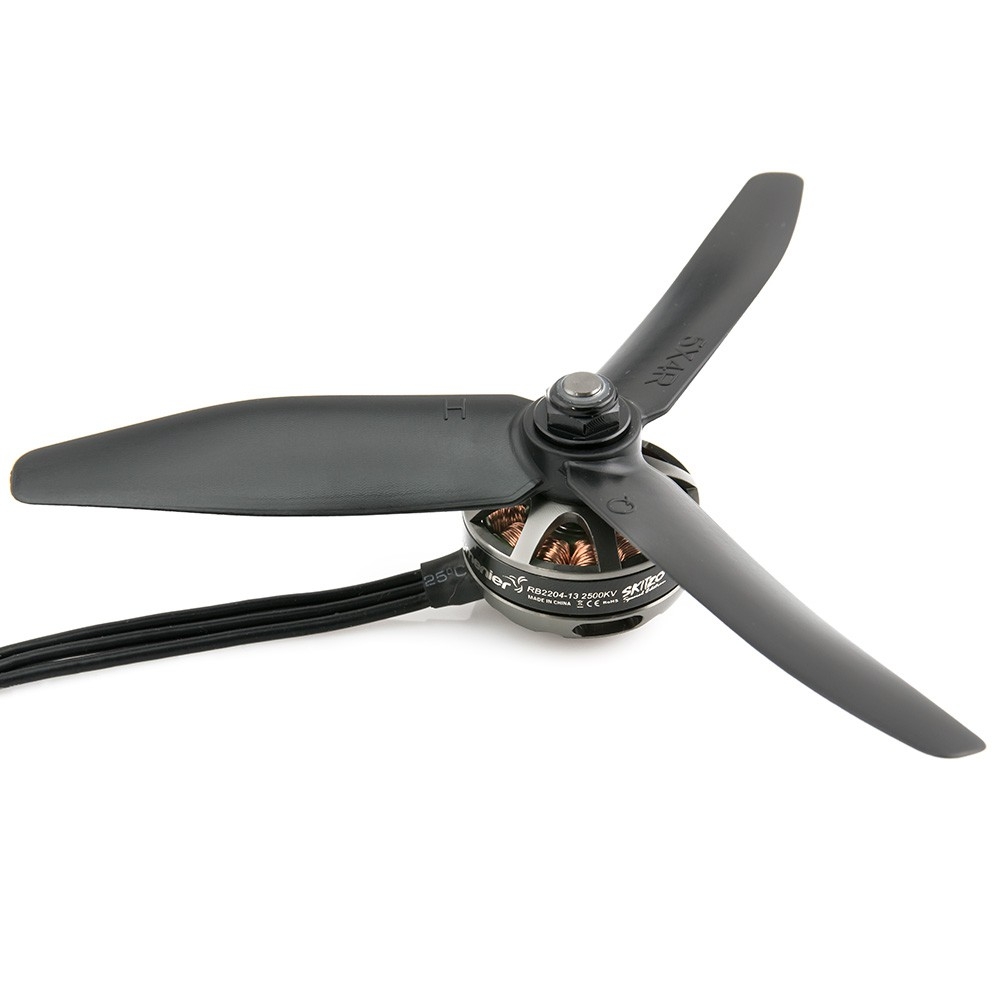

The Lumenier RB2204-13 2500Kv motors have a strong 3mm internal shaft which has been machine pressed into the upper bell of the motor. No longer is there a need for set screws that loosen over time. The motor features an integrated 5mm threaded prop adapter allowing you to directly mount the propeller to the motor without the need of a separate prop adapter, saving you weight. An ultra-lightweight, black anodized, low profile, flanged aluminum lock nut is also included with each motor ensuring your propellers do not come loose during flight. Each motor comes with 4x M3x5 screws for mounting on most airframes. The motor wire length is 100mm and includes pre-soldered male 2mm bullet connectors for easy installation. Alternatively, you can also simply cut the motor wires to the desired length and directly solder them to your ESC. With the motor wires cut to a short length (bullets removed) the motor only weighs an incredible 21.5g!

Includes

  • 1x Lumenier RB2204-13 2500Kv SKITZO Special Edition Motor
  • 1x Lumenier M5 Black Aluminum Low Profile Lock Nut (CW)
  • 4x M3x5 Socket cap screws

Specifications

Kv 2500
Configuration 12N14P
Windings 13 turn DLRK
Termination D (Delta)
Stator Diameter 22mm
Shaft Diameter 3mm
Motor Dimension 27x15mm
Weight 21.5g (23g w/ bullets)
Idle Current @12.6v (Io), @16.6v (Io) 0.58A, 0.63A
Cells (LiPo) 2-4S
Max Continuous Current (A) 60s 15A
Max Burst Current <10s 30A
Max Continuous Power (W) 60s 190W
Max Efficiency Current (2.2-6A) 80%
Internal Resistance (Rm) 260mΩ
Motor Wire Length 100mm
Motor Connection Male 2mm bullet
