Onboard Monitor with LiPo & USB Charger
View control from the driver’s seat for a totally new R/C driving experience.
Experience FPV (first person view) control as you fly or drive your Drone Racer or car with the KYOSHO ONBOARD MONITOR. This wireless camera and monitor set brings the FPV system made popular on racing drones to hobby model users. The KYOSHO ONBOARD MONITOR operates on 2.4GHz frequency utilizing FHSS that also minimizes image transmission delay, unlike most systems that operate on 5.8GHz, which can require an amateur radio license. The wireless camera incorporates a transmission unit that allows it to be installed on the fuselage (or chassis) and communicate independently with the monitor mounted on the transmitter so you can start enjoying your model’s action from first person view. The wireless camera can mount straight on to the Drone Racer and can also be installed on the MINI-Z Racer with the included conversion connector (*1, 2) and on other R/C models with a standard receiver (*3, 4). Experience a totally new vision of land, sea and air model enjoyment with the KYOSHO ONBOARD MONITOR.
*1 : Can not be installed on MINI-Z Buggy
*2 : Rear shock needs to be removed when installing on MINI-Z Racer. Not compatible with all body styles.
*3 : Requires regulator if connecting to high voltage receiver.
*4 : Available for LiFe 2 cells(6.6V) as power supply if connected to general purpose receiver.
4.3 inch color LCD monitor with 480x272 pixel resolution and adjustable contrast. 5 buttons available: SNAP for still shots, REC for recording start and stop, VIEW for replaying photos and video, UP and DOWN for scrolling through the menu screen. Other features include power switch on the right side of the monitor, micro SD card slot on the left side for saving media, and AV output terminal (AV cable sold separately) for connecting to an external display. |
Tip of the wireless camera can be moved ±20° for manual adjustment of camera angle. Weighing only 12g, this compact camera delivers 480x272 video resolution (130,000 pixels). |
Monitor uses the same 3.7V-1000mAh LiPo battery power source as the Drone Racer.
|
Monitor is equipped with camera screw (nut) so it can be attached to a standard camera tripod. |
Attachment to fit the monitor is compatible with the Kyosho KT-231(+) and KT-331P and KT-531P transmitters. Angle can be set freely to your preference. |

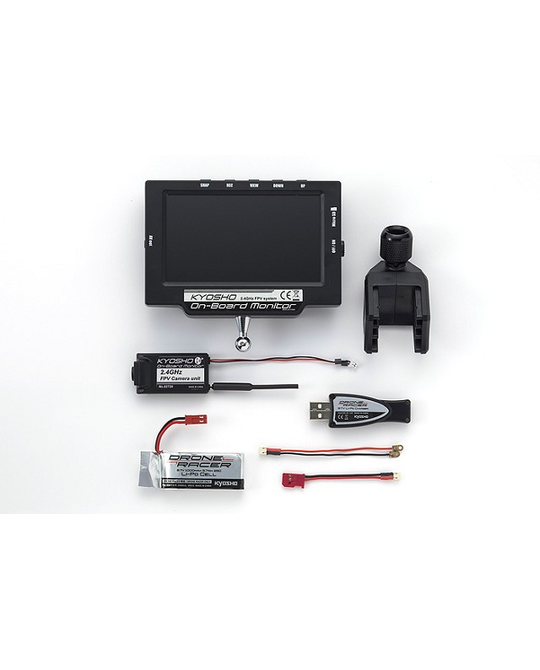

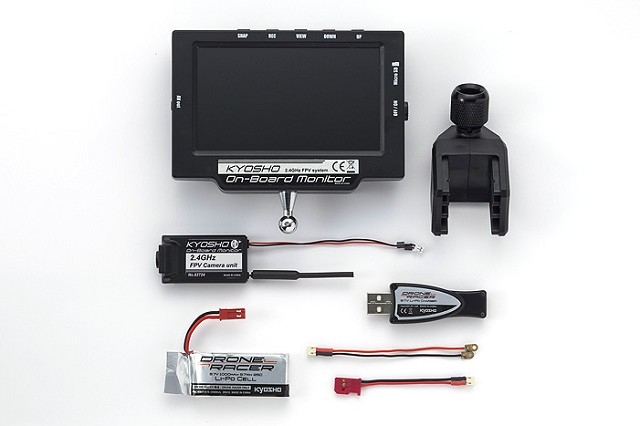

Set contents: wireless camera; monitor; attachment for KT-231P+&KT-531P; EVA cushion tape. (*1); LiPo battery for monitor; USB charger; conversion connector for receiver (*2) conversion connector for MINI-Z. (micro SD card is required to be purchased separately.) *1 Install the cushion tape on the underside of the Drone Racer’s motor pod to minimize shocks when landing. *2 Conversion connector enables wireless camera to be used not only with the Drone Racer but also with the MINI-Z Racer and other R/C models installed with a standard receiver. |
