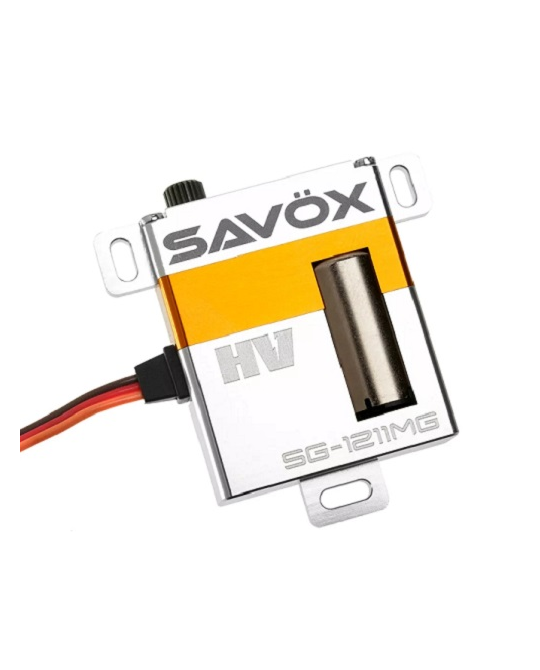

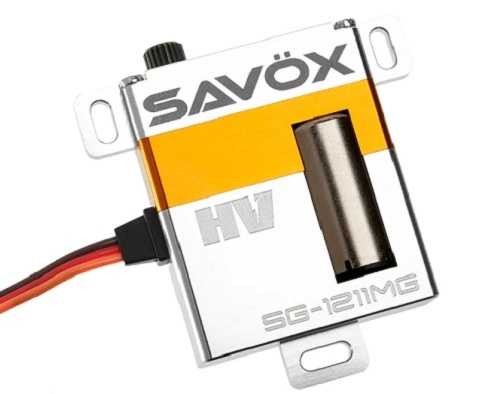

Servo - SG-1211MG - Digital - High Voltage - Coreless Motor - Metal Gear
Features:
• Metal Gear train for extended life and durability.
• Special design for glider applications.
• All aluminum case for secure mounting.
• Capable of 2S Operation
Specifications:
• Torque @6v - 8.0kg
• Torque @7.4v - 11.03kg
• Speed @6v - 0.18 sec/60 deg
• Speed @7.4v - 0.15 sec/60 deg
• Dimensions L x W x H (mm): 30.0 x 10.0 x 36.0
• Weight: 29g
General Info
- Item Nr
- SG-1211MG
- Barcode
- 4710006993591,00
- Brand
- Savöx
Servo - Specs
- Speed 60°/Sec @ 6.0V
- 0,18
- Speed 60°/Sec @ 7.4V
- 0,15
- Torque kg/cm @ 6.0V
- 8,00
- Torque kg/cm @ 7.4V
- 11,03
- Quiescent Current (mA)
- 5,00
- Rated Current (mA)
- 180,00
- Blocking Current (mA)
- 3700,00
Servo - Dimensions
- Servo Type
- Standard Servo
- Spline Type
- 21T Spline
- Length (mm)
- 30,00
- Width (mm)
- 10,00
- Height (mm)
- 36,00
- Weight (g)
- 29,00
Servo - Technology
- Technology
- Digital HV
- Operating Voltage (V)
- 6.0V - 8.4V
- Servo Motor
- Coreless Motor
- Servo Protection
- Water - Dust Resistant
- Servo Positioning
- VR Potentiometer - Direct Drive
- Servo Gears
- Metal Gears
- Servo Case
- Aluminium Case
- Connector
- JR Universal + Colored Lead
