UBEC 10A (2-6S)
Roll over to zoom in or click to enlarge
UBEC 10A (2-6S)

Spektrum

UBEC 10A (2-6S)

$145.00
Code:SPMX-1016

Product Details

These days, many radio control applications require multiple high-power, high-torque servos that can draw a lot of current. The Spektrum™ UBEC efficiently delivers power from the battery to the servos.


In The Box
  • (1) 10A 2-6S UBEC
  • (1) Manual

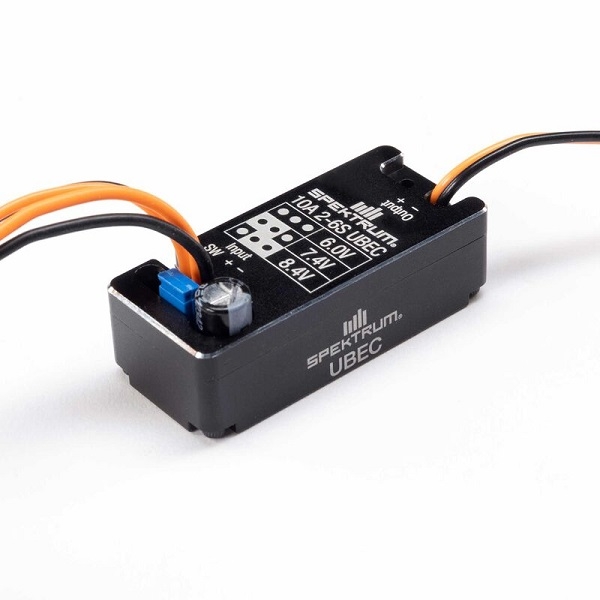

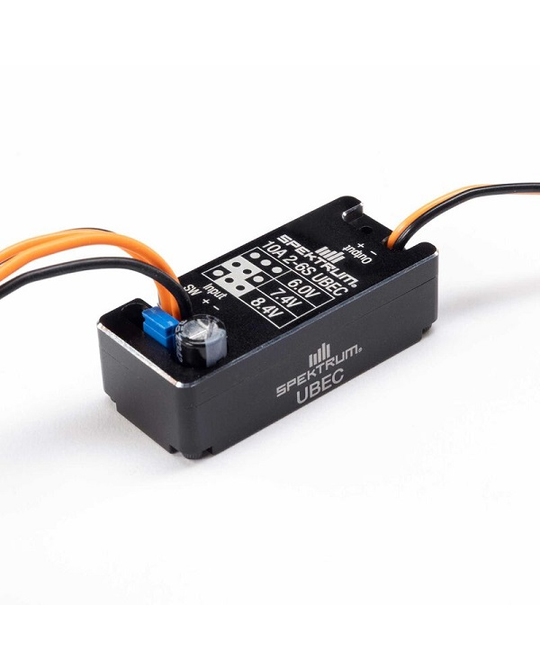

Spektrum 10A 2-6S UBEC Overview

The UBEC uses an efficient DC-DC regulator chip with a conversion efficiency of more than 90%. The UBEC output voltage is adjustable in three stages (6.0/7.4/8.4 V) with a continuous current of 10A and a maximum of 15A. The voltage specifications allow the use of a wide range of servos and electrical equipment such as lights, winches, wipers, and more. The aluminum housing is designed to help dissipate heat and reduce electromagnetic interference. Additionally, the UBEC is equipped with overcurrent protection, output short-circuits protection, overheat protection, and IP67 waterproof dust design, and can be used with crawlers, trucks, aircraft, and other electric models.

Spektrum 10A 2-6S UBEC Features

  • High-efficiency DC-DC regulator chip for transfer efficiency of over 90%
  • Adjustable output voltage (6.0V/7.4V/8.4V) applicable for devices with different voltages
  • Handles 10 amps continuous current, 15 amps instantaneous current








  • Multiple protections, including overcurrent, short circuit, overheat, and IP67 waterproof dust design
  • Aluminum housing for quick heat dissipation and less electromagnetic interference

Product Specifications

Application2-6S Lithium Batteries
Part TypeElectronics
Product Height0.63" (16 mm)
Product Length1.77" (45 mm)
Product Weight34g (including wires)
Product Width0.78" (20 mm)
