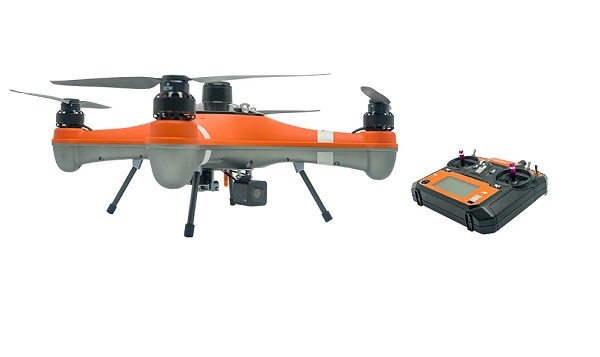

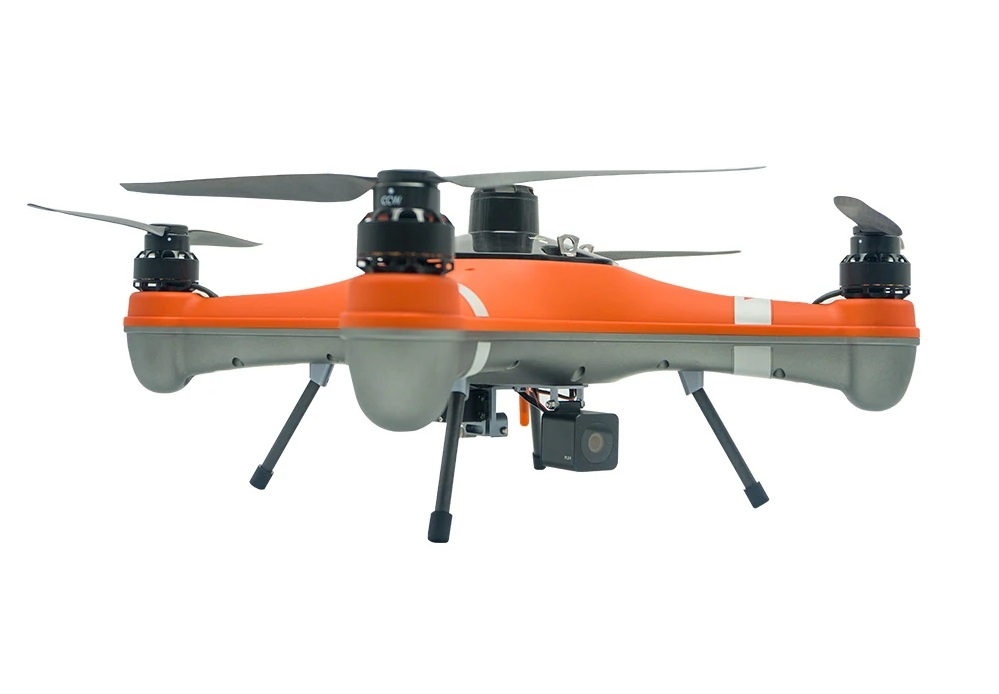

Fisherman FD1 Fishing Drone

Waterproof Rating:IP67

Drone Weight (include battery and propellers)2050g

Axis Diameter:450 mm

Max Ascend Speed:4 m/s

Max Descend Speed:4 m/s

Max Flight Speed:10 m/s（GPS); 22 m/s（ATTI)

Max Tilt Angle:ATTI Fast Mode 25°；ATTI Slow Mode 12.5°

Max Altitude from Takeoff Point:120 m (GPS) / 1.3 km (ATTI)

Max Wind Speed Resistance:72km/h | 20 m/s | 39knot

Hovering Accuracy:±0.5m

Max Flight Time:30 mins (no wind & no load); (approx. 15 mins with 1.0kg, approx.12 mins with load of 1.5kg)

Max Flight Distance:1.6 km

Max Payload Capacity:2.0 kg

Satellite Positioning Systems:GPS/GLONASS

Flight Control:Hawk

Motor:#3509/740Kv

ESC:40A (flux)

Propeller:#1242 carbon fiber quick release propellers

Working Temperature:-10℃ ~ 40℃

Battery Type:4S 15.2V 6500mAh Lipo

Battery Weight:640g

Charging Time:90 min

Remote Control

Weight:378 g (without battery）

Size:174x89x190 mm

Frequency:2405 – 2475 MHz

Band Wide:5000 KHz

Coding Mode:GFSK

Effective Distance:1.3 km (No interference, open area)

Receiving Sensitivity:-105dBm

Transmitting Power:Less than 20dBm

Channel:6

Battery Type:6V (1.5V AAx4)

PL1-F

Waterproof:IP67

Max Payload Weight:2kg

Size:60.7*36.2*50mm

Cable Length:220mm

Weight:90g

PL2-F

Waterproof:IP67

Max Payload Weight:2kg

Size:122.5*50*39mm

Cable Length:160mm

Weight:150g

Sensor Size:1/2.7; support WDR (Wide Dynamic Range)

Resolution:2000TVL | 800x480

Lens:F/2.5 f/2.1

Input Voltage:5~36V

Video Link

Frequency:5645 ~ 5965MHz

Channel:40CH

Transmission Distance:1.6km (No obstacles, no interference)

Power:25/400/600mW

Input Voltage:7.4~26V

Size:32*25*10.4mm(天线140mm)

Weight:12.8g

Dual Usage FPV screen & goggle - GL1

Screen Size:5"

Resolution:800 * 480

Display Scale:16：9

Brightness:300cd /m²

Latency:<20ms

Lens:8 times Fresnel lens, light transmittance 92%, no distortion of light

Antenna:2 X RP-SMA male

USB:For charging（max charging current: 500mA）

Card Slot:Micro SD card (64G max)

Recording Resolution:VGA / D1 / HD optional

REC sound:ON / OFF

Recording Section:OFF / 3min / 5min / 10min

Resolution:30FPS

Compress Format:MJPEG

Video Format:AVI

Language:EN/CN

Power:DC5V / 2A（USB）

Battery:Built-in 3.7V / 2000mAh Lipo Battery

DVR ON - 2.5hour | DVR OFF - 3.5hour"

Size:180mm * 140mm * 84mm

Weight:393g
