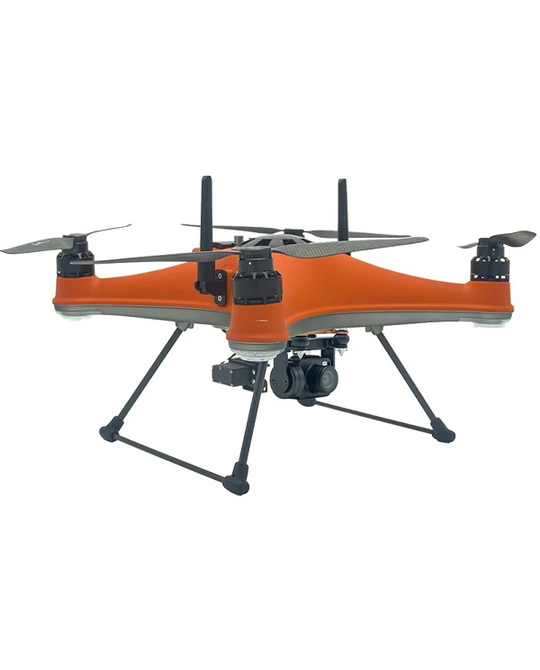

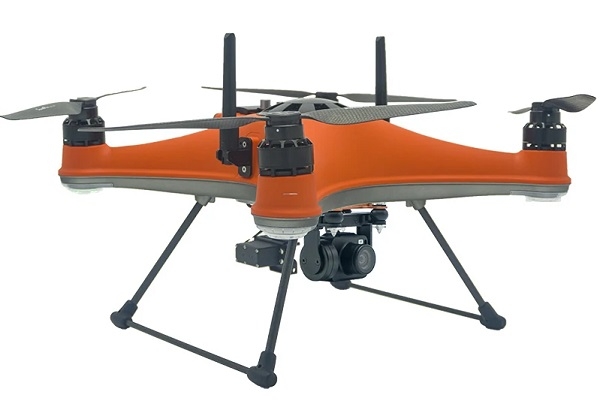

Swellpro - Splashdrone 4 - Profish (1 axis 4K Camera + payload release)

$4,495.50
Code:JCSD4-Drone









Multi-functional waterproof flight platform

SplashDrone 4 Waterproof Drone is the all-new waterproof flight float platform designed for multipurpose operation in any harsh environment. With its modular multi-functional payload system, open interface design and surface navigation mode, the SwellPro SplashDrone 4 can quickly adapt to different tasks in the field.

The SplashDrone 4 ProFish Waterproof Drone comes with the GC1-S 1-Axis Gimbal 4K Camera and the PL-1 payload release that turns the drone into an aerial bait dropping system that can deliver 2kg of bait and drop the bait at targeted locations up to 4km. Using the SwellPro NaviFLy app, you can program the bait drop or replay flights to successful fishing locations.

All-new IP67 seawater-proof body
SplashDrone 4 is designed to have the best waterproofing technology in the industry. The tough, rigid fuselage of is made out of industrial-grade ABS. Each SplashDrone 4 is factory-sealed to the slightest details and air-pressure tested for Swellpro's exclusive 100% waterproof guarantee. The waterproof motors and internal electronics are also coated with corrosion-resistant coating adding an extra layer of protection over the already total waterproof design.

All-new IP66 Waterproof Remote Controller
The all-new SplashDrone 4 remote controller is now waterproof for your worry-free operation. You can even toss it on the water or rinse off the collected sand. The built-in GPS offers a variety of new features, including real-time tracking and dynamic return to pilot. The remote controller is now capable of offering multiple devices connection for a better collaborative operation.

Innovative Smooth+ Flight Control
The patented "Smooth+" flight control allows you to finely tune the Roll and Yaw of SplashDrone 4. Smooth+ makes professional, steady flight control as easy as turning the knobs. Want to take a steady shot? Simply switch to Smooth+ control, together with Swellpro's 4K 3-axis gimbal, you can take high-quality, ultra-smooth and steady shots effortlessly.

5KM Image Transmission
The latest 5.8GHz digital image transmitter and adjustable antennas ensures a clear and reliable image and control signal range to the SplashDrone 4 of over 5km whist airborne.
Important: Due to the nature of radio waves, when flying just 0.5m above the water, range is still up to 2.8km and floating on the water surface the transmission range is 500m.

Power-Flip
When the drone turns upside down on the water for any reasons, Power-Flip feature turns the drone back to the normal state to take the control back. Dynamic Return to pilot
The SplashDrone 4 constantly records the GPS position of the remote controller, allowing the aircraft to always return to your position even if they are on a moving boat far away from the original take-off point.

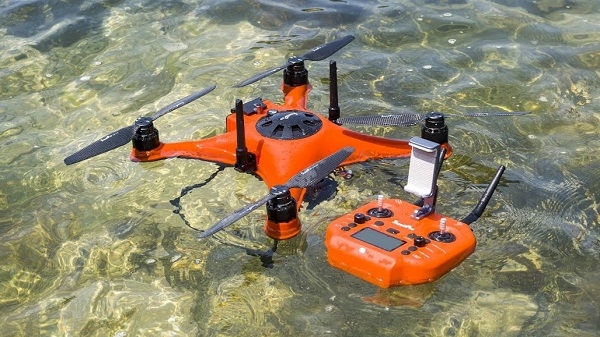

Boat Mode
Equipped with floating foams, boat mode allows SplashDrone 4 to sail on water just like a boat, providing great underwater shots whilst remains the water area uninterrupted. Caves and other overhead environments can now be accessed by SplashDrone 4 for research, exploration and underwater photography.

Unrivalled-performance Propulsion System
The more powerful 740Kv motor, 40A ESC together with optimised aerodynamic design allow for tight, responsive and total control of SplashDrone 4 in any challenging weather conditions.

Smart Battery
The new slide-in smart battery has an internal battery management system for real-time power monitoring and protection both in charging and discharging, ensuring battery health, safety and longer lifespan. The 6600mAh high-performance lithium technology cells provide up to 30 minutes of flight time.

The SwellPro Navifly APP
The newly-developed SwellPro Navifly APP enables logging, planning, recording of missions as well as the control and parameter setting of cameras and other modules in flight.

API
SplashDrone 4 offers API for third-party software to gather data from sensors and to configure its control of aircraft, gimbal, camera and third-party add-ons.

SDK
SDK allows deep integration of third-party add-ons to SplashDrone 4. Together with API, SplashDrone 4 is truly a multi-purpose and multi-functional platform for your imagination.

GC1 4K 1 Axis Gimbal Camera
GC1-S is a 1-Axis gimbal 4K camera for Splash Drone 4 for 4k video and high resolution 12 Megapixel Photos. It is a more affordable option for users that need to accurately locate their target zone before remotely dropping attached payloads or bait.

Water-resistant Payload Release (PL-1)
The PL-1 payload release turns the SplashDrone 4 into an aerial bait dropping system that can deliver 2kg of bait and drop the bait at targetted locations up to 4km. The PL-1 can be mounted together with your choice of camera accessories for targetted payload release. Using the SwellPro NaviFLy app, you can program the bait drop or replay flights to successful fishing locations.

SplashDrone 4 ProFish Waterproof Drone Features:

Drone
  • IP67 seawater proof body
  • IP66 Waterproof remote controller
  • 5km image transmission
  • Automatic power flip
  • 2kg payload capacity
  • 30 min flight time
  • Slide-in smart battery
  • Dynamic return to pilot
  • Floating design
  • Corrosion-free
  • All weather flying (rain and snow)
  • Wind resistance beaufort force 7 (33 knots / 31 mph / 60 km/h)

Remote
  • High-brightness 2-in digital telemetry display
  • WiFi multi-point hotspot
  • Built-in GPS
  • 8-hour battery life

SplashDrone 4 ProFish Waterproof Drone Specifications:

Aircraft
  • Waterproof Rating: IP67
  • Drone Weight (include battery and propellers): 2.18 kg
  • Axis Diameter: 450 mm
  • Max Ascend Speed: 4m/s
  • Max Descend Speed: 4m/s
  • Max Flight Speed: 22 m/s (ATTI)); 10 m/s (GPS)
  • Max Tilt Angle: 12.5° (ATTI); 25° (ATTI fast)
  • Max Takeoff Altitude: 120m (GPS) / ATTI - no limitation
  • Max Wind Speed Resistance: 8 m/s (11-16knots)(F4); 14 m/s (F7) peak gust
  • Max Flight Time: 30 mins (no wind and no load) (approx. 25 mins with GC3-S, approx.15 mins with load of 1.5kg)
  • Max Flight Distance: 5.0 km
  • Max Payload Capacity: 2.0 kg
  • Propellers: #1242 carbon fibre quick release propellers
  • Operating Frequency: 5180 - 5875 MHz
  • Transmitter Power (EIRP): FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm
  • Working Temperature: -10℃ ~ 40℃
  • Satellite Positioning Systems: GPS/GLONASS
  • Hovering Precision: ±0.5 m (vertical); ±0.5 m (horizontal)
  • Pass-through Serial Port: Connect to a third-party device and transfer the data of the third-party device to the remote control
  • UART: Allows for TTL serial port to TCP, support baud rate of 115200
  • Wi-Fi Hotspot: IP: 192.168.1.101:2222
  • Power Input: 12V/2A | 5V/2A

Remote Control
  • Waterproof Rating: IP66
  • Operating Frequency: 5180 - 5875 MHz
  • Transmitter Power (EIRP): FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm
  • Real-time Video Transmission: 720P @ 30fps
  • Latency: 200 ms (It depends on the actual shooting environment and mobile devices)
  • Battery: 2S 3600mAh
  • Working Time: 7 hours
  • Working Current/Voltage: 0.3A/7.4V
  • Ethernet Port: IP: 192.168.2.220:2222
  • Wi-Fi Hotspot: IP: 192.168.2.220: 2020; Default password: 12345678
  • Mobile Device Mount: Suitable for any size phones; tablets require a larger mount (sold separately)
  • Screen: 2.68 inch, 128x64
  • Working Temperature: -10℃ - 40℃
  • Remote Charging time: 3 hours
  • Power Input: 5V/2A

Intelligent Battery
  • Nominal Capacity: 6600mAh: Voltage: 14.8V
  • Type: Intelligent 4S LiPo: Watt Hours: 97.68 Wh
  • Size: 153.6 x 82.4 x 48.3 mm: Weight: 735 g (±5 g)
  • Working Temperature: -10℃ - 40℃: Charging Time: 1.5 hour
  • Max Charging Power: 84 W

Charger
  • Input: 100 – 240V, 50/60Hz
  • Output: 16.8V @ Dynamic Current / 5V @ 1.5A
  • Rated Power: 84.5 W

Mobile Device connection
  • Operation Frequency: 5180 - 5875 MHz
  • Max Transmission Distance: 10m (Unobstructed, free of interference)

APP
  • Mobile App Name: NaviFly
  • Live View Quality: 720p @ 30fps
  • Latency: < 250 ms (depending on environmental conditions and mobile devices)

1-Axis Gimbal Camera (GC1)
  • Waterproof: IP67
  • Axis: 1 axis (pitch)
  • Pitching Angle: -90° to 0°
  • Maximum Control Speed: Pitch 60°/s
  • Weight: Approx. 145g
  • Size: 71 x 55 x65 mm
  • Image Sensor: 1/2.3" 12M SONY CMOS
  • Lens: F4.53mm f/2.65, FOV: 92.6°
  • ISO range: 100 - 3200
  • Shutter Speed: 16 - 1/16000 s
  • Photo Resolution: 4:3/16:9 12M pixel
  • Burst Photo: 3/5/10 pcs
  • Interval Photo: 1/3/5/10s
  • Video Resolution: 4K: 3840 x 2160/30P | 2.7K: 2704 x 1520/60P | FHD: 1920 x 1080 30/60/120P | HD: 1280 x 720/240P
  • Max Video Stream: 64 Mbps
  • Photo Format: JPEG / DNG
  • Video Format: MP4 / MOV
  • Support Memory Card: Micro SD CARDS with a maximum capacity of 128GB, write speed ≥60 MB/s, supports Class 10 or above and UHS-1 rating
  • Working temperature: -10℃ to 40℃

Payload Release (PL-1)
  • Waterproof Rating: IP67
  • Weight: 96g
  • Size: 59 x 38 x 50 mm
  • Max. loading weight: 2kg

What's in the Box:
  • 1x Aircraft
  • 1x Remote controller
  • 2x Propellers (pair)
  • 1x Intelligent battery
  • 1x Power adapter
  • 1x Power cable
  • 1x RC barrel power cable
  • 1x Micro USB cable
  • 1x Hex screwdriver, 2x hex screw
  • 1x Barometric vent (extra)
  • 1x Manual, certificate, maintenance
  • 1x Case
  • 1x 1-Axis Gimbal Camera (GC1)
  • 1x Payload Release (PL-1)
