The CONNEX ProSight HD Vision Kit - 5006

$1,139.90
Code:GF5006

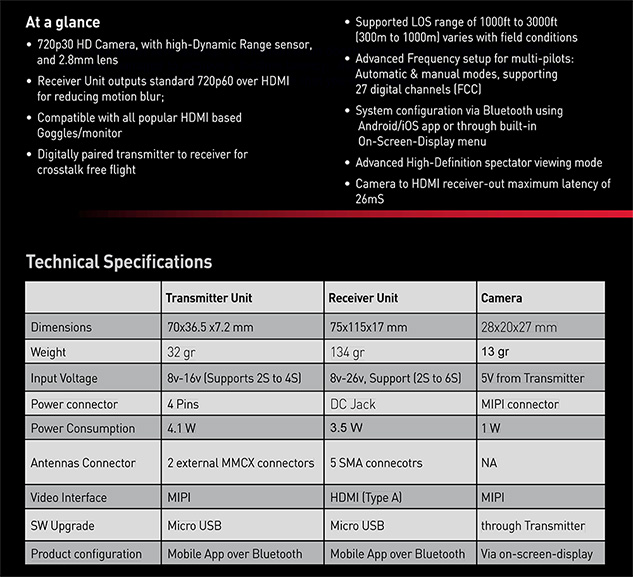

Connex Prosight Stats

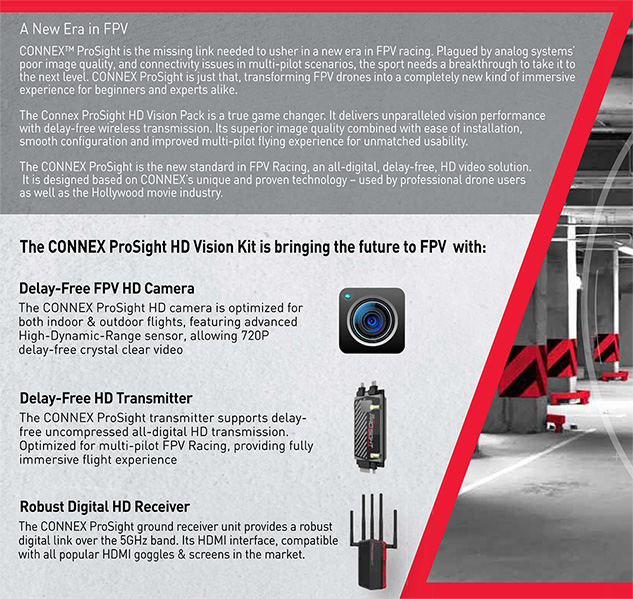

Connex Prosight Features

Features

  • 720p30 HD Camera, with high-dynamic range sensor and 2.8mm lens
  • Receiver Unit outputs standard 720p60 over HDMI for reducing motion blur
  • Compatible with all popular HDMI based Goggles/Monitors
  • Digitally paired transmitter to receiver for crosstalk-free flight
  • Supported LOS range of 1000ft to 3000ft (300m to 1000m) varies with field conditions
  • Advanced frequency setup for multi-pilots: Automatic & Manual modes, supporting 27 digital channels (FCC)

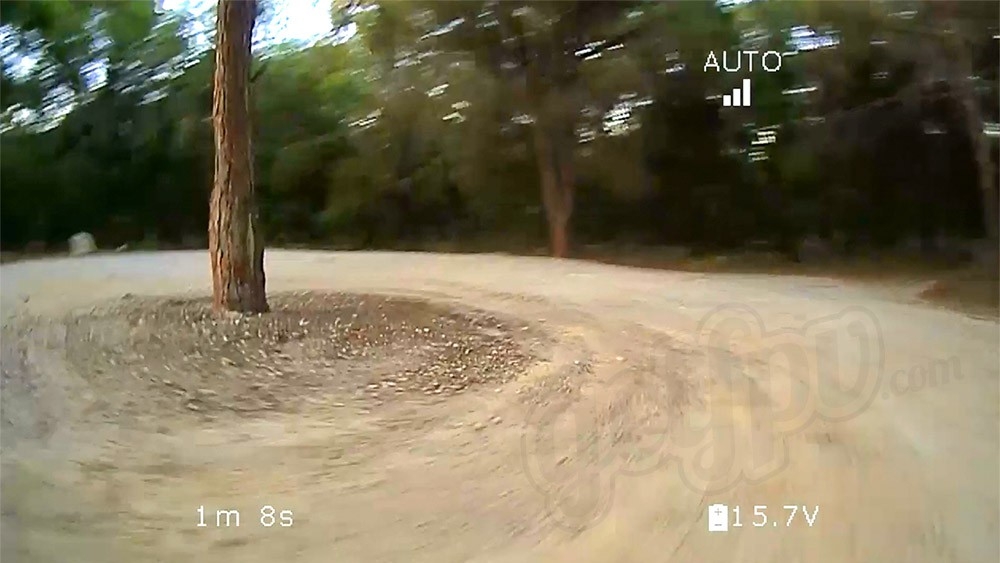

  • System configuration via Bluetooth using Android/iOS app or through built-in on-screen display menu
  • Advanced High Definition spectator viewing mode
  • Camera to HDMI receiver-out maximum latency of 26mS
Price: $1,139.90
Availability:
Enter a quantity:
Add to wishlist
Specs

Specifications (Transmitter)

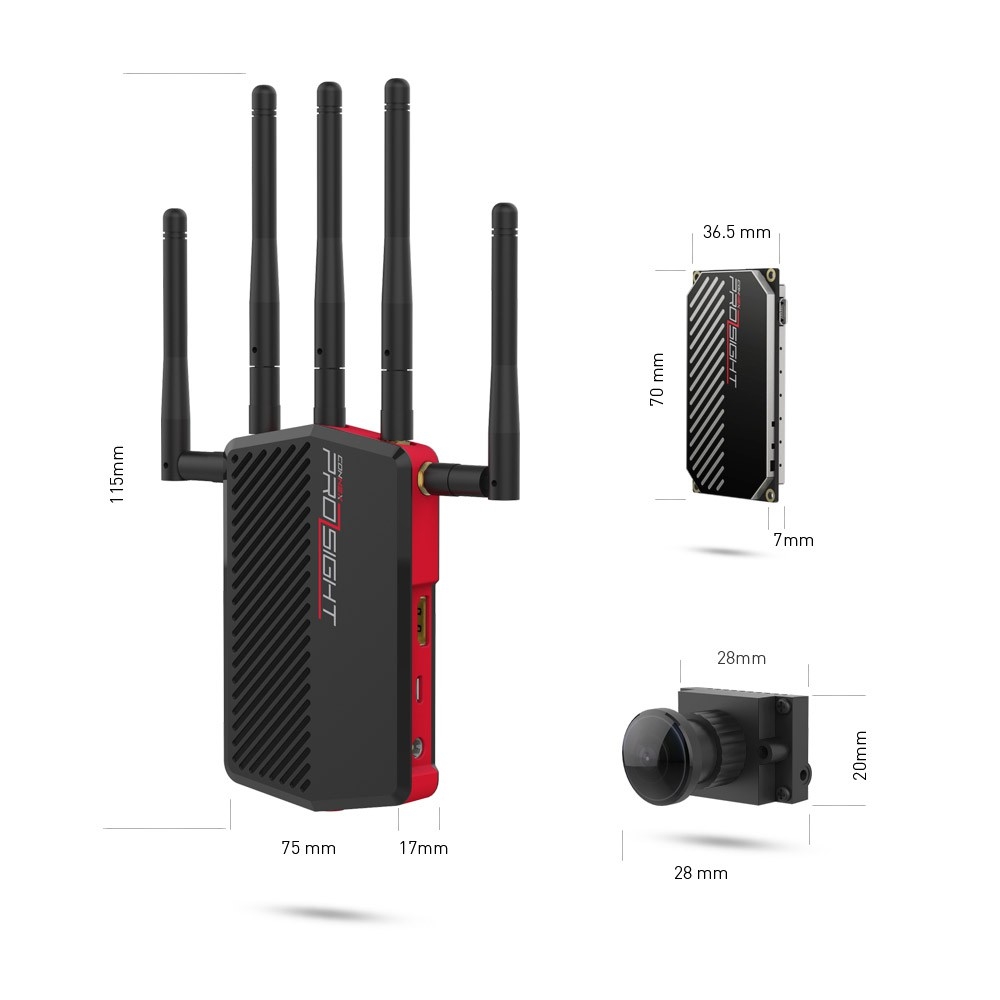

  • Dimensions: 70x36.5x7.2mm
  • Weight: 32gr
  • Input voltage: 8v – 16v (supports 2S to 4S)
  • Power Connector: 4 Pins
  • Power Consumption: 4.1W
  • Antenna Connector: 2 External MMCX Connectors
  • Video Interface: MIPI
  • SW Upgrade: Micro USB
  • Product  Configuration: Mobile App over Bluetooth

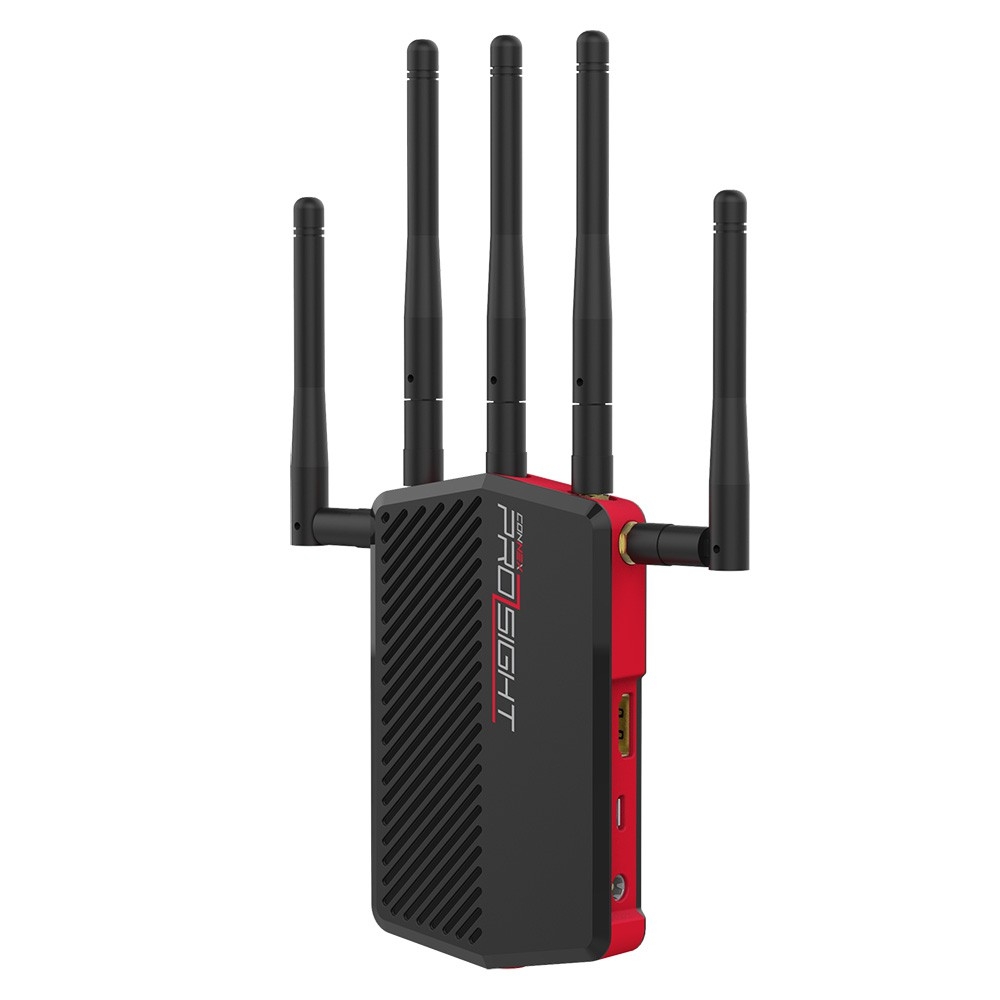

Specifications (Receiver)

  • Dimensions: 75x115x17mm
  • Weight: 134gr
  • Input voltage: 8v – 26v (supports 2S to 6S)
  • Power Connector: DC Jack
  • Power Consumption: 3.5W
  • Antenna Connector: 5 SMA Connectors
  • Video Interface: HDMI (Type A)
  • SW Upgrade: Micro USB
  • Product  Configuration: Mobile App over Bluetooth

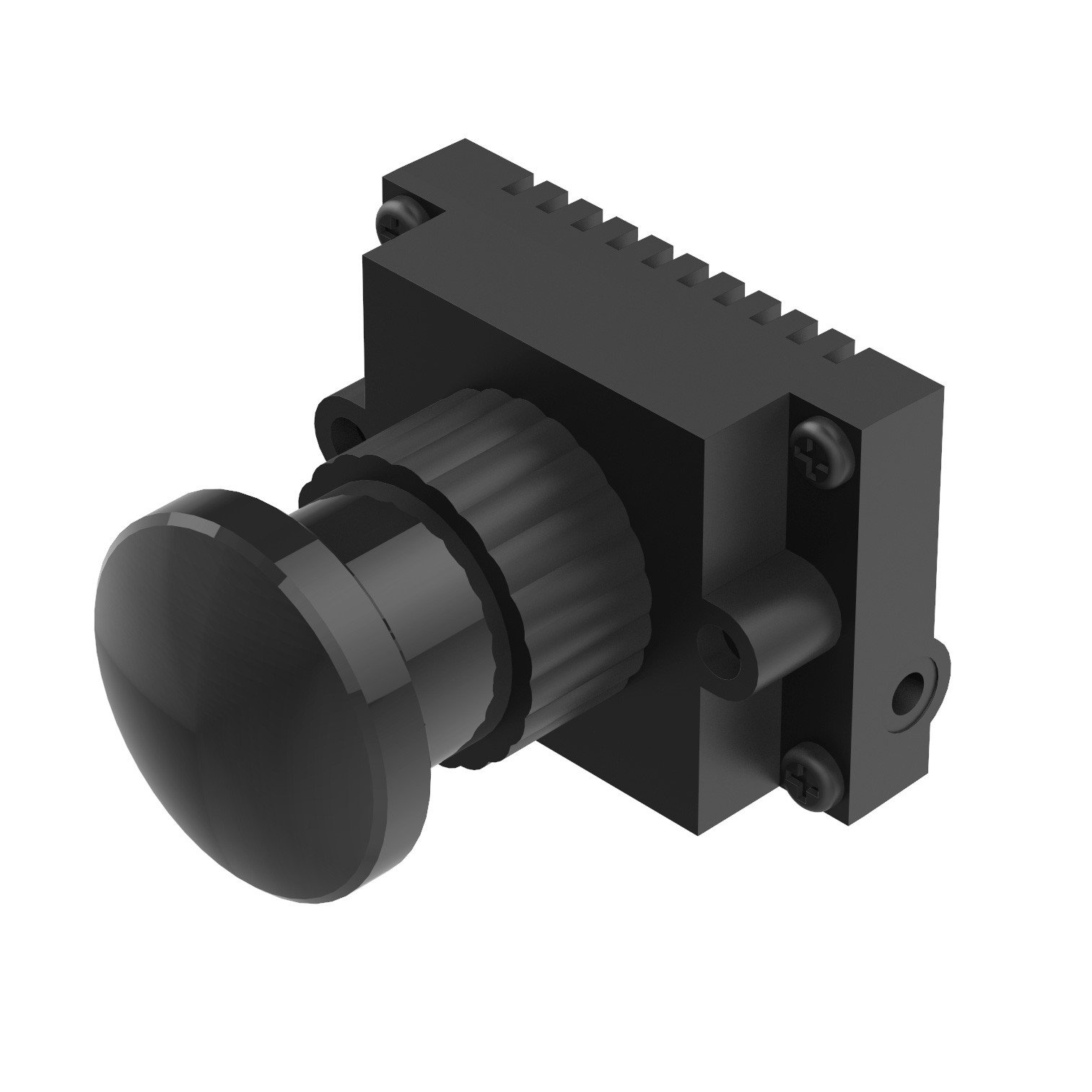

Specifications (Camera)

  • Dimensions: 28x20x27mm
  • Weight: 13gr
  • Input voltage: 5v  from Transmitter
  • Power Connector: MIPI
  • Power Consumption: 1W
  • Antenna Connector: N/A
  • Video Interface: MIPI
  • SW Upgrade: Through Transmitter
  • Product  Configuration: Via On-Screen Display

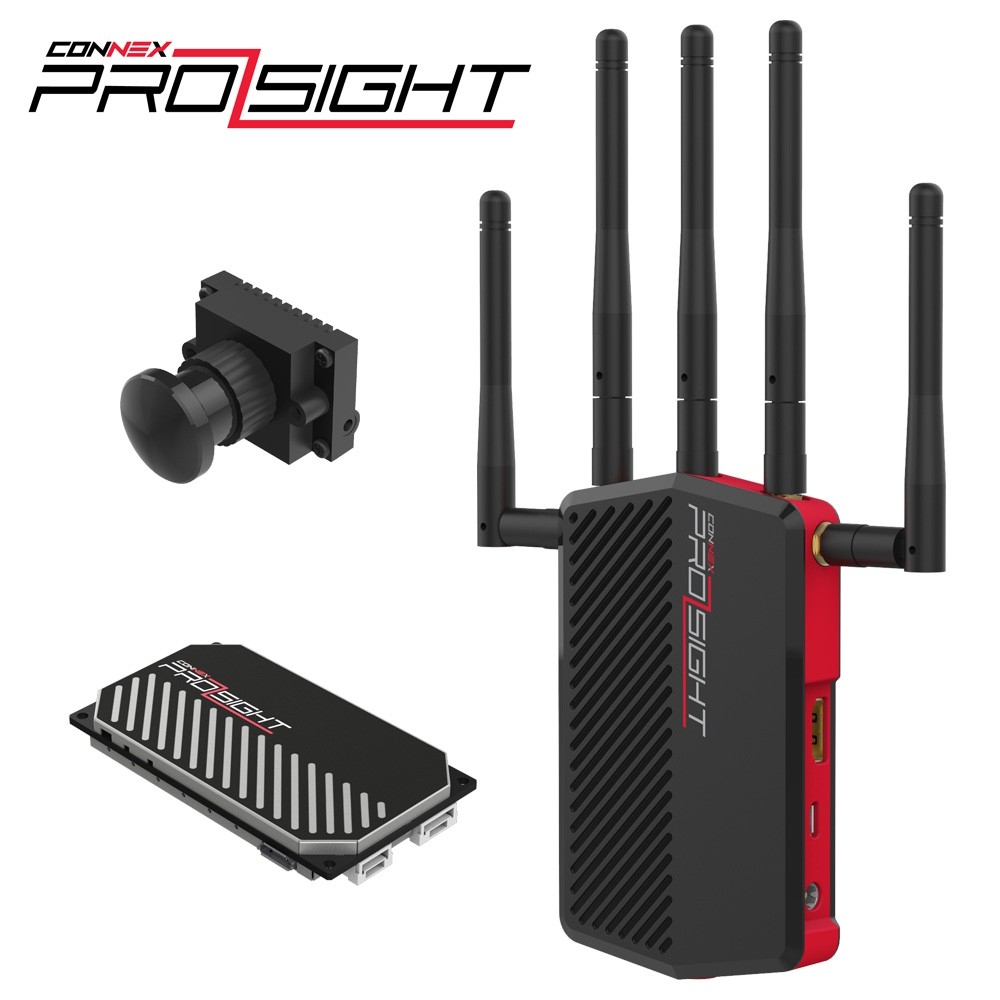

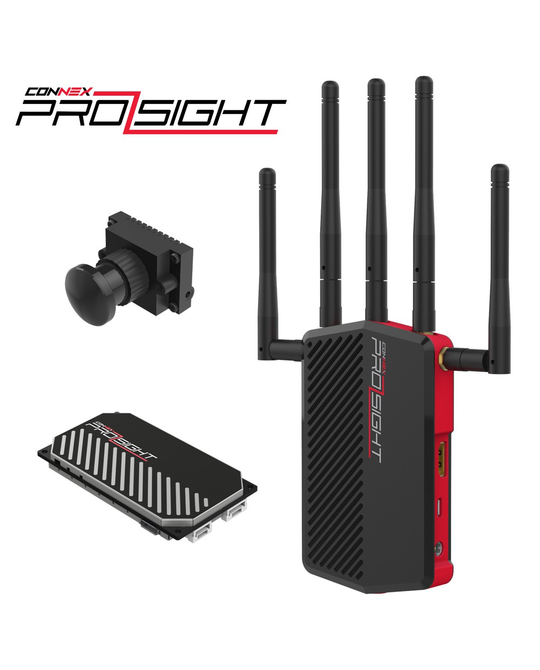

Included

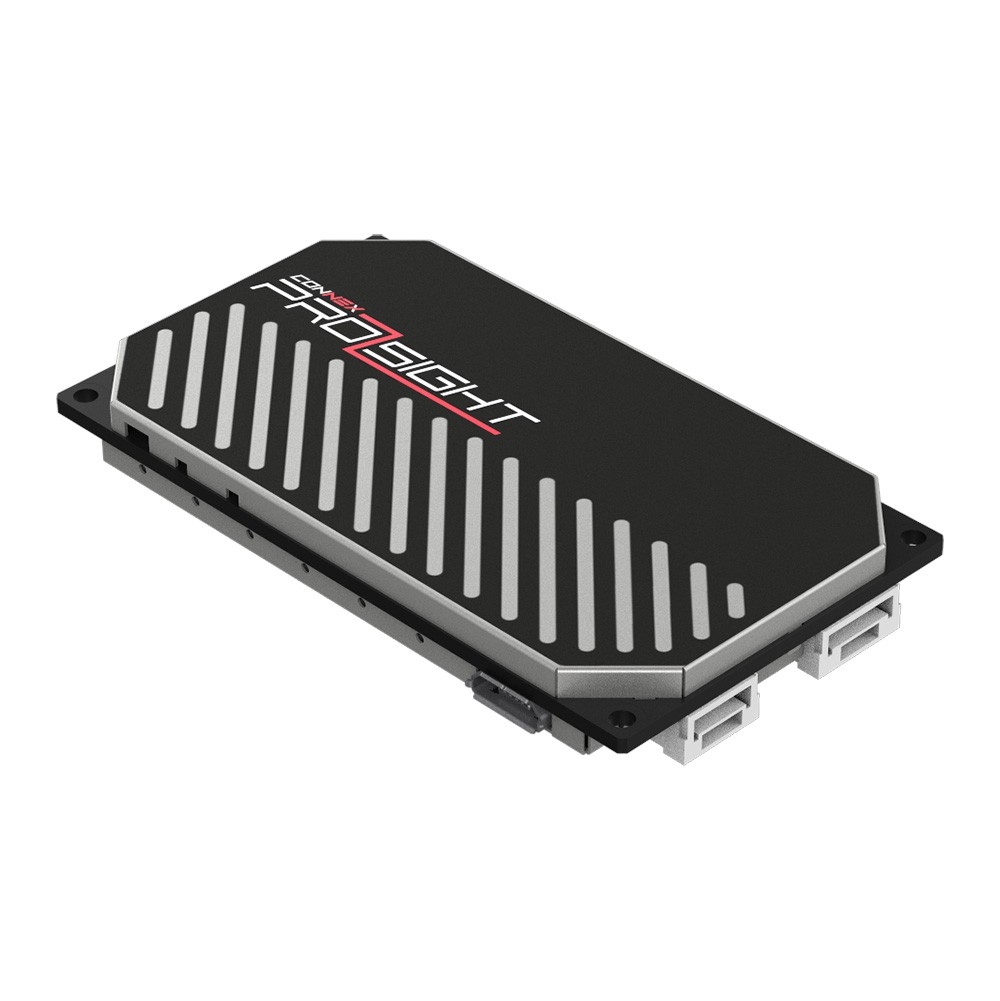

  • Connex Pro Sight Video Receiver
  • Connex Pro Sight Video Transmitter
  • Connex Pro Sight Camera
  • All necessary cabling
