Toro

TS 120A ESC - SK- 300044- 01

$183.20
Code:SK-300044-01
  TS120  ADVANCED TIMING SYSTEM

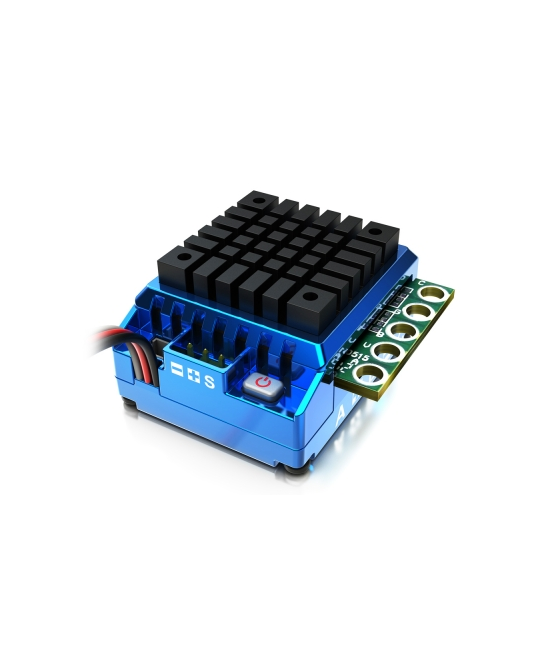

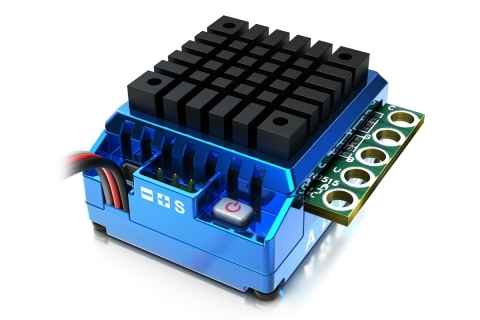

  Toro TS 120A ESC for 1/10th Scale Car is designed for the use with 2S to 3S LiPo battery packs, has a 3.5T motor limit and features a 6V/3A BEC system. This feature does away with the need to use a separate receiver battery pack.
Less resistance, less heat ,more effective

  10 User Modifiable Profiles
  The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.

  Safety Features
  Low voltage protection
Motor and ESC overheat protection
Signal lost protection

  Firmware Update
  The firmware can be updated by connecting the ESC with PC or smart phone.
  Programming Method
  It can be programmed by PC connected with
  1.SKYLINK(SK-600013)

  2.Smart phone via Bluetooth Module(SK-600058)

  3.PROGBOX(SK-300046),

  Precise Programmable Items
  Advanced Timing System
Users could set the turbo and boost timing which can improve the motor RPM to get its best performance.


  Well-performed Throttle and Brake Control Function
  Users could set the punch/brake control rate by point or customize the throttle/brake curve by themselves,and different customers' request for linear and power all can be met.


Price: $183.20
Availability:
Add to wishlist
Specs
Size
  Weight   45g (w/o wire)
  Constant/Burst Current

120A/760A

  Motor Compatible

Brushless Sensor & Sensorless ESC

  Car Compatible   1/10 and 1/12 Buggy and Truck
1/10 and 1/8 Crawlers
  Motor Limits   5-6S NIMH or 2S LIPO--≥3.5T(1/10 Buggy), ≥5.5T(1/10 Truck)

8-9S NIMH or 3S LIPO--≥5.5T(1/10 Buggy),≥8.5T(1/10 Truck)

  Resistance   0.0003ohm
  Battery Cell Count   4-9S NIMH or 2-3S LIPO
  BEC Output   6V@3A, linear
   FAN   5V@0.2A , MAX 12.6V
