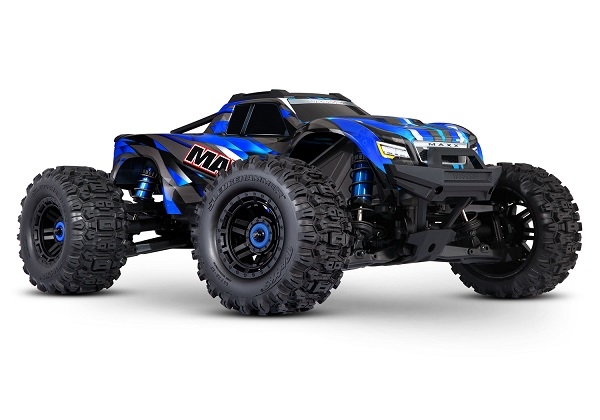

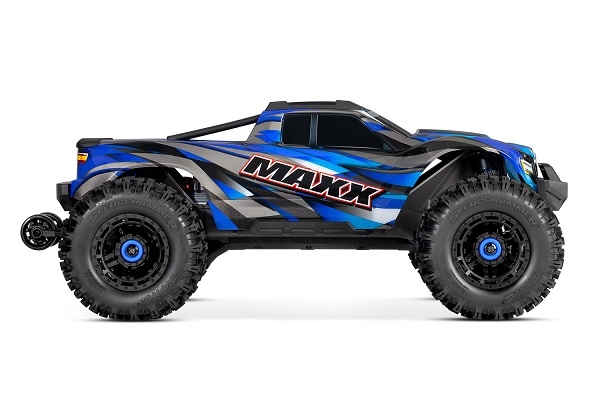

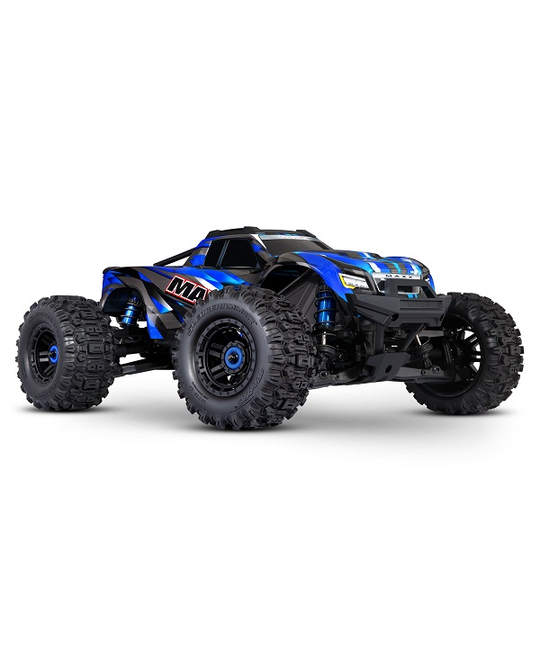

Maxx with Widemaxx - Blue - 89086-4

The Traxxas X-Maxx® is a giant that forever changed the face of RC monster trucks. Its radical cutting-edge design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. The 1/10 Traxxas Maxx® expertly packages X-Maxx’s innovative design elements and jaw-dropping strength into a lighter, more compact, even more, ferocious beast. Now the newest Maxx is even bigger, with a longer wheelbase, beefier Sledgehammer® tires, and that incredible WideMaxx® stance for even more intense action. Let the fun begin!

What’s In The Box:

Maxx, Ready-To-Race® model with Traxxas 540XL brushless motor
VXL-4s waterproof electronic speed control with integrated telemetry
Quick Start Guide
TQi™ 2.4GHz radio system
High quality maintenance tools


Specs:

Length:  22.50 inches (572mm)
Front Track:  15.95 inches (405mm)
Rear Track:  15.95 inches (405mm)
Ground Clearance (lowest skid):  1.90 inches (49mm)
Ground Clearance (center skid):  2.6 inches (67mm)
Weight:  10.40 lbs (4.7kg)
Height (ride):  9.12 inches (232mm)
Wheelbase:  13.85 inches (352mm)
Shock Length:  4.90 inches (124mm)
Tire Diameter:  5.64 inches (143mm)
Wheel Diameter:  2.8 / 3.6 inches (70 / 92mm)
Speed Control:  Velineon VXL-4s
Motor (electric):  540XL (2400 kV)
Transmission:  Single-Speed
Overall Drive Ratio:  12.37 (23/50 motor pinion and spur gear)
Differential Type:  Sealed, hardened steel bevel, limited slip
Gear Pitch:  Module 1.0
Chassis Structure/Material:  Composite Modular Tub
Brake Type:  Electronic
Drive System:  Shaft-driven 4WD
Steering:  Double-shear bellcrank
Wheels & Tires:  2.8” wheels, pre-glued Sledgehammer® Tires & foam inserts; 5.6x2.8–3.6
Radio System:  2-Channel, TQi™ 2.4GHz Transmitter with TSM® receiver
Servo:  Torque: 285oz-in.
Top Speed:  60+ MPH with 4S LiPo battery and optional gearing (sold separately)
Skill Level:  4
Battery Tray:  186mm L x 48mm W x 43mm H
Required Batteries:  4 “AA” (transmitter)



Motor Specs:

Type:  2400 kv sensorless brushless
Weight:  317g (11.18oz)
Length:  3.58 inches (91mm)
Diameter:  1.41 inches (36mm)
Connector Type:  Traxxas 6.5mm bullet connectors



ESC Specs:

Input Voltage:  3S–4S LiPo (11.1V – 16.8V)
Case Size:  2.83 inches (72mm) x 2.32 inches (59mm) x 1.93 inches (49mm)
Weight:  201g (7.09oz)
BEC Voltage:  6.0 V
BEC Current Continuous:  10 A
BEC Current Peak:  20 A
Motor Connectors:  Traxxas 6.5mm bullet connectors
Battery Connectors:  Traxxas High-Current Connectors
Power Wire:  10-gauge Maxx Cable
Ports:  RX input, auxiliary fan, Traxxas accessory port



Features List:

VXL-4s™ Waterproof Electronic Speed Control
3S–4S LiPo compatible
Built-in cooling fan
Real-time telemetry via Traxxas Link™
Machined heat sinks
10-gauge silicone wire
Integrated protection circuits
LED status lights
Waterproof
Velineon® 540XL Brushless Motor
Long format brushless motor
4-pole 2400 kV
5mm output shaft
Aluminum heat sink
Cooling fan
55+ MPH out of the box using single 4S LiPo battery (sold separately)
60+ MPH with optional gearing and single 4S LiPo battery (sold separately)
Traxxas Stability Management™
Helps prevents spinouts and loss of control
Adjusts from off to 100% assistance from the transmitter
TQi™ 2.4GHz High Output Radio System
TQi™ 2.4GHz transmitter
Traxxas Link™ enabled
TQi 2.4GHz 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
Multi-Function knob
Adjustable steering and throttle percentage (dual rates)
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle end points
High 13ms frame rate and near-zero latency for responsive control
Telemetry-ready 5-channel micro receiver
Clipless Body Mount System
Quick one-hand installation and removal
Uses pivoting rear latch mechanism
Eliminates body posts and clips
Reinforced for extra protection against tearing
Drivetrain
Full-time shaft-driven 4-wheel drive
Torque-Biasing Center Drive™ absorbs shocks and distributes power
17mm keyed wheel hex with 5mm nut
Sealed, silicone fluid-filled diffs with large module ring and pinion gears
Heavy-duty Cush Drive™
Extreme-duty telescoping driveshafts
Splined aluminum center driveshaft
Secure Motor Mounting System
Precise, fixed gear mesh adjustments
Motor retention separate from gear mesh
Full-length motor cradle

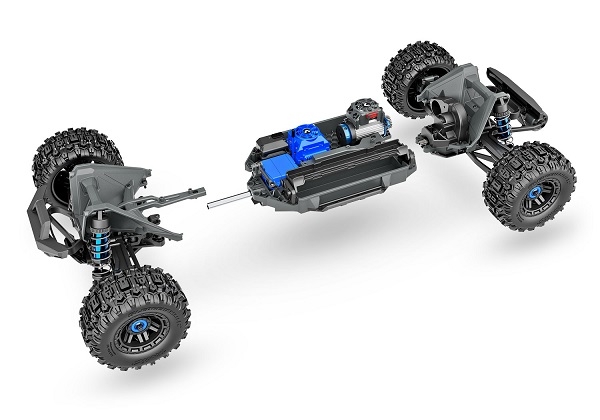

New Modular Composite Chassis
Extended modular chassis design interlocks with front and rear bulkheads
Absorbs and distributes impact energy
Easy to service and access components
Driveline is sealed in the chassis to keep out dirt and grit
Easy Battery Access
Extended battery tray accepts Traxxas’ largest 6700mAh 4-cell LiPo battery
Battery is protected deep in the chassis
Battery hold-downs pivot for easy access
More secure than conventional retention systems
Heavy-Duty Steering Bellcranks and Servo
Large-scale high-output steering servo
285oz-in of torque
0.18 sec transit speed
Triangulated mounting system to fully support case
Heavy-duty double-shear bellcranks
Suspension

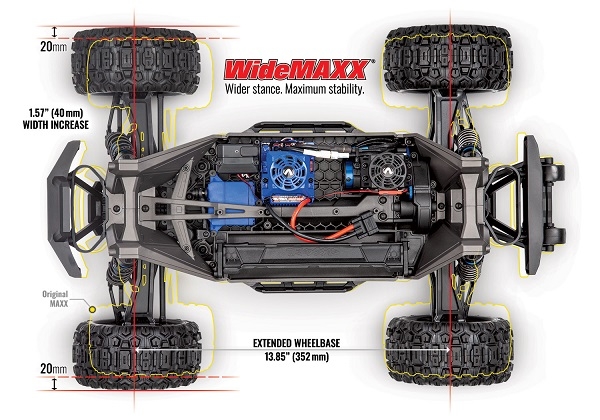

WideMaxx® double-shear suspension arms


1.57” (40 mm) wider for improved handling
Tough new composite formula resists impact damage, even in cold weather
Engineered to optimize suspension travel and steering angles
All critical suspension points have double shear strength
Steel pivot balls
C-hub and steering block geometry maximizes steering angle
Fixed, high-strength camber and toe links
Steel upper and lower tie bars
Full contact sealed bearings used throughout driveline
GT-Maxx® Shocks
Machined aluminum threaded body
Extra-large bore and capacity
Large-diameter damper shaft
Lower seal cartridge with dual X-rings
Adjustable upper spring retainer
Plastic shock caps with pivot balls
Lower spring perches bolted on
Bumpers
Tough energy absorbing front and rear bumpers
Lower front and rear skids for impact and abrasion resistance
Integrated nerf bars for side impact resistance
Wheelie bar with integrated carry handle
Wheels/Tires
Tough 2.8” wheels with keyed 17mm hex receptor
Sledgehammer® extreme tires for sure-footed traction
1-piece foam inserts
Pre-glued and ready for action
TSM™ rated
