Maxx with Widemaxx - RnR - 89086-4

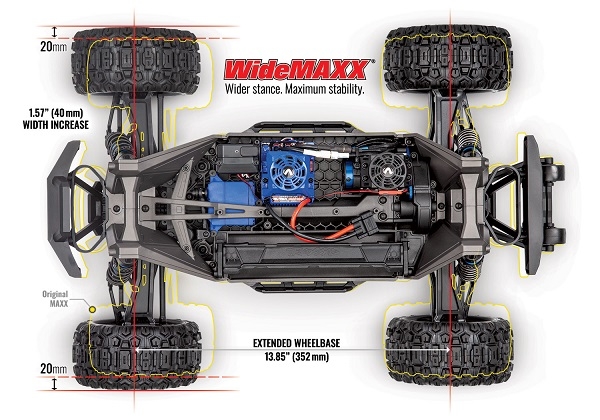

The Traxxas X-Maxx® is a giant that forever changed the face of RC monster trucks. Its radical cutting-edge design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. The 1/10 Traxxas Maxx® expertly packages X-Maxx’s innovative design elements and jaw-dropping strength into a lighter, more compact, even more, ferocious beast. Now the newest Maxx is even bigger, with a longer wheelbase, beefier Sledgehammer® tires, and that incredible WideMaxx® stance for even more intense action. Let the fun begin!

What’s In The Box:

Maxx, Ready-To-Race® model with Traxxas 540XL brushless motor
VXL-4s waterproof electronic speed control with integrated telemetry
Quick Start Guide
TQi™ 2.4GHz radio system
High quality maintenance tools

What You’ll Need:
LiPo Battery
Traxxas recommends a 4-cell 14.8V Power Cell LiPo battery for maximum performance. A 3-cell 11.1V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.

LiPo Balance Charger with iD™
Traxxas EZ-Peak Live 4s-capable charger is recommended for easy and fast charging performance (model #2971).


AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.

Batteries & Charger are not included


Length:  22.50 inches (572mm)
Front Track:  15.95 inches (405mm)
Rear Track:  15.95 inches (405mm)
Ground Clearance (lowest skid):  1.90 inches (49mm)
Ground Clearance (center skid):  2.6 inches (67mm)
Weight:  10.40 lbs (4.7kg)
Height (ride):  9.12 inches (232mm)
Wheelbase:  13.85 inches (352mm)
Shock Length:  4.90 inches (124mm)
Tire Diameter:  5.64 inches (143mm)
Wheel Diameter:  2.8 / 3.6 inches (70 / 92mm)
Speed Control:  Velineon VXL-4s
Motor (electric):  540XL (2400 kV)
Transmission:  Single-Speed
Overall Drive Ratio:  12.37 (23/50 motor pinion and spur gear)
Differential Type:  Sealed, hardened steel bevel, limited slip
Gear Pitch:  Module 1.0
Chassis Structure/Material:  Composite Modular Tub
Brake Type:  Electronic
Drive System:  Shaft-driven 4WD
Steering:  Double-shear bellcrank
Wheels & Tires:  2.8” wheels, pre-glued Sledgehammer® Tires & foam inserts; 5.6x2.8–3.6
Radio System:  2-Channel, TQi™ 2.4GHz Transmitter with TSM® receiver
Servo:  Torque: 285oz-in.
Top Speed:  60+ MPH with 4S LiPo battery and optional gearing (sold separately)
Skill Level:  4
Battery Tray:  186mm L x 48mm W x 43mm H
Required Batteries:  4 “AA” (transmitter)



Motor Specs:

Type:  2400 kv sensorless brushless
Weight:  317g (11.18oz)
Length:  3.58 inches (91mm)
Diameter:  1.41 inches (36mm)
Connector Type:  Traxxas 6.5mm bullet connectors



ESC Specs:

Input Voltage:  3S–4S LiPo (11.1V – 16.8V)
Case Size:  2.83 inches (72mm) x 2.32 inches (59mm) x 1.93 inches (49mm)
Weight:  201g (7.09oz)
BEC Voltage:  6.0 V
BEC Current Continuous:  10 A
BEC Current Peak:  20 A
Motor Connectors:  Traxxas 6.5mm bullet connectors
Battery Connectors:  Traxxas High-Current Connectors
Power Wire:  10-gauge Maxx Cable
Ports:  RX input, auxiliary fan, Traxxas accessory port
