Traxxas 77096-4 X-Maxx 8S ESC Belted
Unrelenting 4X4 power, mammoth size, and award-winning innovation make X-Maxx the ultimate monster truck. With 30+ volts of extreme 8s power, X-Maxx defies physics, unleashing jaw-dropping acceleration and 50+ mph speed. Belted Sledgehammer® tires conquer the most extreme terrain while providing unrivaled high-speed stability. Built to take brutal punishment in stride, X-Maxx is the definition of Traxxas Tough™.
| Length: | 30.67 inches (779 mm) |
|---|
| Front Track: | 21.3 inches (540 mm) |
|---|
| Rear Track: | 21.3 inches (540 mm) |
|---|
| Ground Clearance: | 4 inches (102 mm) |
|---|
| Weight: | 19.1 pounds (8.66 kg) |
|---|

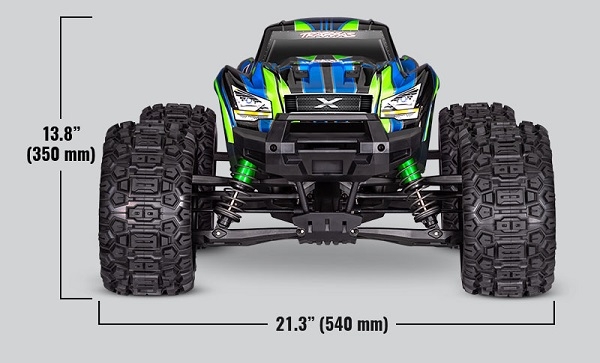

| Height (ride): | 13.79 inches (350 mm) |
|---|
| Wheelbase: | 18.92 inches (480 mm) |
|---|
| Shock Length: | 7.4 inches (187 mm) |
|---|
| Tires (pre-glued): | 8.0x4.0 inches (203 mm) |
|---|
| Wheels: | 4.3x5.7 inches (110x145 mm) |
|---|
| Wheel Hex Size: | 24 mm splined hex |
|---|
| Speed Control: | Velineon® VXL-8s |
|---|
| Motor (electric): | Velineon 1200XL |
|---|
| Transmission: | Single-speed |
|---|
| Overall Drive Ratio: | 8.11 (stock, out-of-box) |
|---|
| Differential Type: | Sealed, hardened steel bevel, limited slip |
|---|
| Gear Pitch: | 1.0 pitch |
|---|
| Chassis Structure/Material: | Composite Nylon tub |
|---|
| Brake Type: | Electronic |
|---|
| Drive System: | Shaft-driven 4WD |
|---|
| Steering: | Bellcrank |
|---|
| Radio System: | TQi™ 2.4 GHz Transmitter with TSM® receiver |
|---|
| Servo: | Torque: 365 oz/in Speed: 0.17 sec/ 60° (6.0 V) |
|---|
| Top Speed: | 50+ MPH with two 4s LiPo batteries and optional gearing |
|---|
| Skill Level: | 6 |
|---|
| Battery Tray: | 197 mm x 51.5 mm x 44 mm |
|---|
| Required Batteries: | 4 “AA” (transmitter) and 3-cell LiPo battery (x2) or 4-cell LiPo battery (x2) |
|---|
SIZE WINS
At the end of the day, size always wins. X-Maxx plows over obstacles and muscles through extreme terrain that leaves lesser trucks stranded. Mammoth 8-inch-tall tires, long-arm suspension, and huge ground clearance dwarf the surroundings for virtually unstoppable monster truck fun.
EXTREME POWER
At Traxxas, too much power is never enough! The durability of the VXL-8s™ is matched only by the sheer ferocity of its 8s 30+ volt LiPo muscle. The speed-tuned 1200XL Big Block motor propels X-Maxx with brutal authority and exacting quickness that warps your senses. No matter what you have driven in the past, nothing will prepare you for X-Maxx.
ALL-METAL DRIVETRAIN
X-Maxx puts its massive power to the ground through an all-metal 8s driveline backed by the revolutionary Cush Drive® system, high-strength extruded aluminum center shaft, and our strongest steel driveshafts ever. The Torque-Biasing Center Drive improves driveline durability and drives huge steel 4-gear differentials.

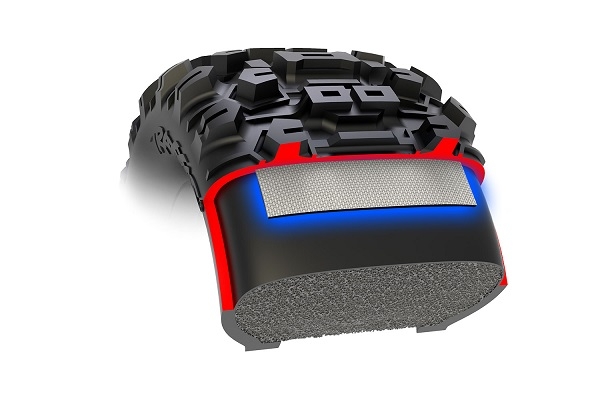

BELTED TIRES
X-Maxx’s belted Sledgehammer tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.
What’s In The Box:
X-Maxx, Ready-To-Race model with Traxxas Big Block brushless motor
VXL-8s waterproof electronic speed control with integrated telemetry
Quick Start Guide
TQi 2.4 GHz radio system
High quality maintenance tools
What You’ll Need:
Batteries
IMPORTANT: X-Maxx requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh Power Cell LiPo batteries with iD® are recommended for optimal performance.(part 2890X).
4s LiPo Completer Pack with iD®
The Traxxas Dual 4s Completer Pack is the perfect choice to extract maximum power from your X-Maxx. Two 6700 mAh 4-cell batteries and the Traxxas EZ-Peak® Live Dual charger are included for easy and fast charging performance (part 2990).
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
